Gasoline Drive

Alpha One®

Available for single and twin engine applications, the Alpha One’s efficient hydrodynamic profile produces very little drag, which means better boat performance and fuel economy.


Gasoline Drive

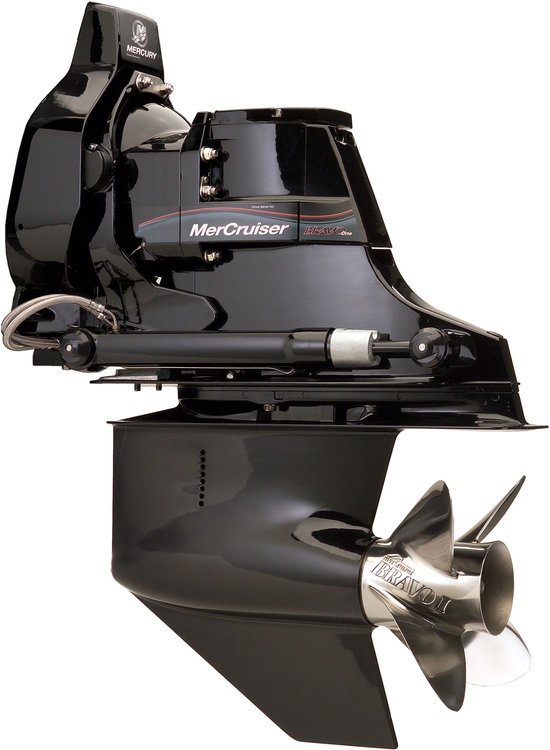

Bravo One®

Extended-length torpedos reduce drag and a deeper skeg provides a large rudder area for excellent steering response at any speed.

Refined and well-mannered with best-in-class shifting. Intended for single, twin, and triple applications for boats that go over 100 mph, gas engines up to 600hp and diesel engines up to 370hp.

Bravo One®, Bravo One X®, Bravo One XR® for gas stendrives; Bravo One X Diesel and Bravo One XR Diesel for diesel engines.


Gasoline Drive

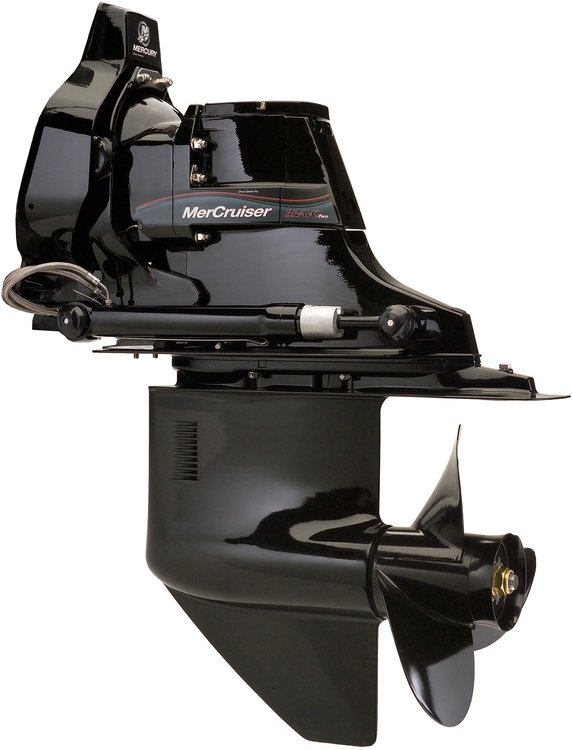

Bravo Two®

With a longer-length design and large-diameter shaft, Bravo Two® and Bravo Two X® accommodate up to 20-inch propellers.High thrust at low speeds. Quick planing. Improved fuel economy. Everything you need to get going - and get going fast.No matter how big the load. For twin applications up to 55 mph, gas engines up to 450hp and diesel engines up to 370hp.Bravo Two, Bravo Two X, for gas stendrives; Bravo Two X Diesel and Bravo Two XR® Diesel for diesel engines.


Gasoline Drive

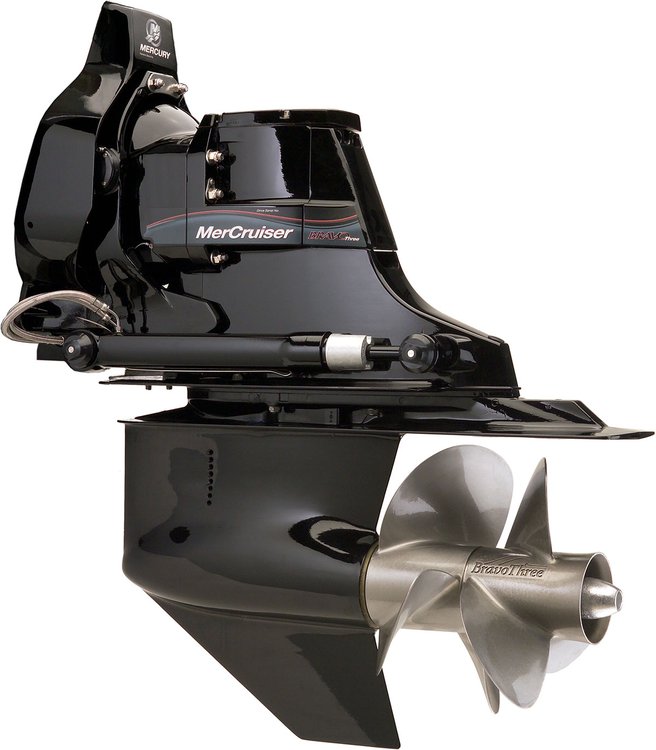

Bravo Three®

Featuring dual counter-rotating propellers, the Bravo Three® gives you great steering control in the marina and incredible performance on open water. The extra blade on the propellers lets your boat plane-off at a lower speed for optimal fuel efficiency.Efficient design for minimal bow rise.Advanced acceleration for better forward visibility. Single/twin applications up to 65 mph, gas engines up to 525hp or diesel engines up to 370hp. Acceleration, maneuverability, and efficiency. Bravo Three, Bravo Three X®, Bravo Three XR for gas stendrives; Bravo Three X Diesel and Bravo Three XR Diesel for diesel engines.



Diesel Drive

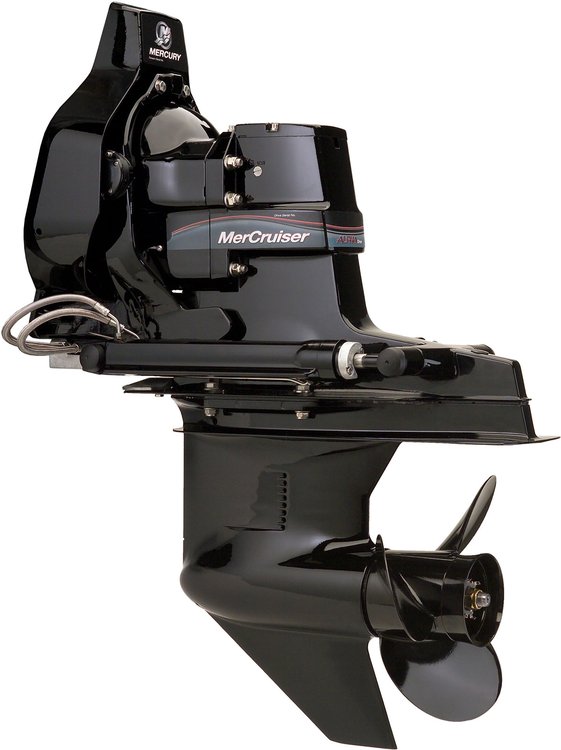

Alpha One
  • Available for single and twin engine applications, the Alpha One’s efficient hydrodynamic profile produces very little drag, which means better boat performance and fuel economy.
  • Features like an integrated water pump and permanently lubricated pivot points let you spend less time on maintenance and more time boating.
  • Designed for boats capable of up to 65 mph and gas engines delivering up to 300hp and diesel engines up to 150hp.

Diesel Drive

Bravo One X

  • The Bravo One Diesel family of drives delivers superior performance with best-in-class shifting.
  • Its exclusive performance torpedo design and dual water pickups allow for speeds topping the century mark, with exceptional handling at high and low speeds.
  • A trim-limit switch sets your drive angle for maximum performance every time, and a greaseable drive coupler allows for quick and easy service without removing the drive unit.


Diesel Drive

Bravo Two X

  • The unique Bravo Two Diesel drives have an unmatched ability to maximize lift and thrust without breaking a sweat for cruisers and houseboats.
  • Due to the girth of the gearcase, Bravo Two Diesel is capable of accommodating a huge 20-inch diameter prop with deeper gear ratios.
  • This allows the Bravo Two Diesel to deliver high thrust around the dock, quick planing and improved fuel economy – putting you in control.
  • Maintenance-free hinge pins allow for easy service without having to pull the boat from the water.


Diesel Drive

Bravo Three X

  • The twin-prop design says it all. Whether in a single-unit or twin-unit application, the Bravo Three is an efficient drive built without compromise.
  • Perhaps it's the best-in-class shifting or its counter-rotating propeller design - enabling agile handling in reverse for precision maneuverability.
  • And the greaseable gimbal bearing makes for an easy ownership experience – allowing for service without removing the drive unit.
  • The Bravo Three XR® Diesel drive, standard on our TDI 4.2 engine, is a super-strength drive with high-performance attributes.

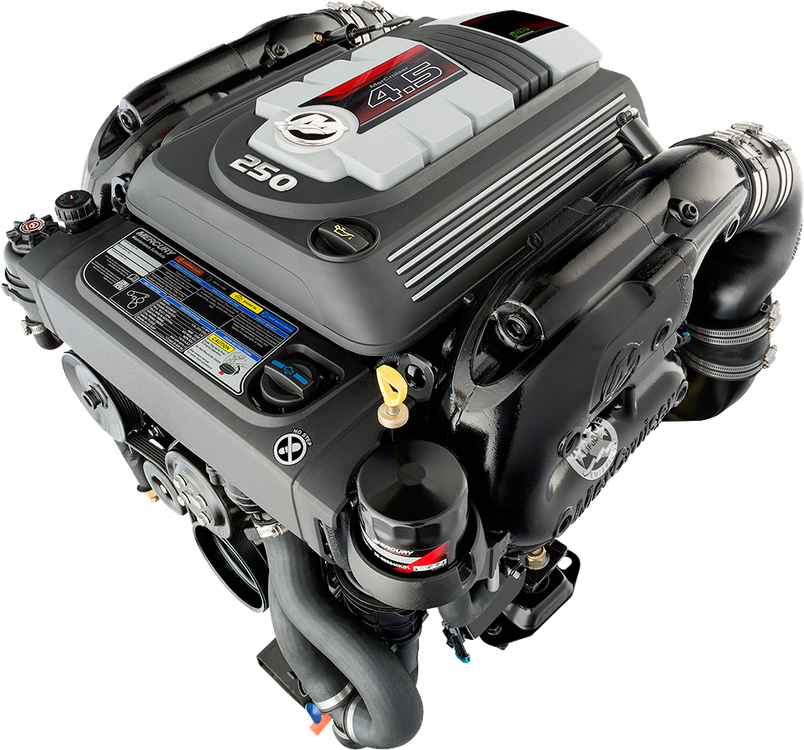

MerCruiser 4.5 L

Engine Details

Featuring a host of engineering innovations, the 4.5L series establishes new standards for power-to-weight ratio, driver experience, acceleration, durability, and ease of maintenance.


SPECIFICATIONS 250HP
HP / kW
  • 250 / 186
Maximum RPM (WOT)
  • 4800-5200
Engine type
  • V6, 2-valve/cylinder pushrod
Displacement (L)
  • 4.5
Displacement (CID/L)
  • 275 / 4.5
Bore and stroke
  • 4.0 x 3.6" / 102 x 92 mm
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Fuel ethanol tolerance
  • Up to 10%
Fuel requirement
  • 90 RON 10% Ethanol Maximum
  • Unleaded Regular 87 Octane Minimum (R+M/2)
Engine control system
  • Mechanical Shifting with Optional SmartCraft DTS
  • Standard SmartCraft with Electronic Throttle Control
Fuel delivery system
  • Computer controlled Multi-Port Electronic Fuel Injection (MPI)
Air induction
  • Performance-Tuned Scroll Intake Manifold
Ignition
  • SmartCraft PCM 112 Digital Inductive
Alternator amp / Watt
  • 70 amp / 882 watt (Belt-Driven)
Water drain system
  • Air Actuated "Season Extender" (Bravo)
  • Easy Drain "Season Extender" (Alpha)
Exhaust system
  • Through prop
Cooling system
  • Water cooled with thermostat; FWC available as factory option (Alpha) and packaged with SeaCore Drive (Bravo)
Lubrication system
  • Integrated wet sump
Recommended oil
  • NMMA Certified FCW 25W-40 Synthetic Blend
Engine guardian system
  • SmartCraft Engine Guardian
Dimensions (L x W x H)
  • 28 x 30 x 22" / 696 x 740 x 559 mm
Weight (engine only)
  • 761 lbs / 345 kg
Compatible drives
  • Alpha
  • Bravo One
  • Bravo Three
  • Bravo Two

MerCruiser 4.5 L

Engine Details

Featuring a host of engineering innovations, the 4.5L series establishes new standards for power-to-weight ratio, driver experience, acceleration, durability, and ease of maintenance.


SPECIFICATIONS 200HP
HP / kW
  • 200 / 149
Maximum RPM (WOT)
  • 4400-4800
Engine type
  • V6, 2-valve/cylinder pushrod
Displacement (L)
  • 4.5
Bore and stroke
  • 4.0 x 3.6" / 102 x 92 mm
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Fuel ethanol tolerance
  • Up to 10%
Fuel requirement
  • 90 RON 10% Ethanol Maximum
  • Unleaded Regular 87 Octane Minimum (R+M/2)
Engine control system
  • Mechanical Shifting with Optional SmartCraft DTS
  • Standard SmartCraft with Electronic Throttle Control
Fuel delivery system
  • Computer controlled Multi-Port Electronic Fuel Injection (MPI)
Air induction
  • Performance-Tuned Scroll Intake Manifold
Ignition
  • SmartCraft PCM 112 Digital Inductive
Alternator amp / Watt
  • 70 amp / 882 watt (Belt-Driven)
Water drain system
  • Easy Drain "Season Extender"
Exhaust system
  • Through prop
Cooling system
  • Water cooled with thermostat; FWC available as factory option
Lubrication system
  • Integrated wet sump
Recommended oil
  • NMMA Certified FCW 25W-40 Synthetic Blend
Engine guardian system
  • SmartCraft Engine Guardian
Dimensions (L x W x H)
  • 28 x 30 x 22" / 696 x 740 x 559 mm
Weight (engine only)
  • 761 lbs / 345 kg
Compatible drives
  • Alpha

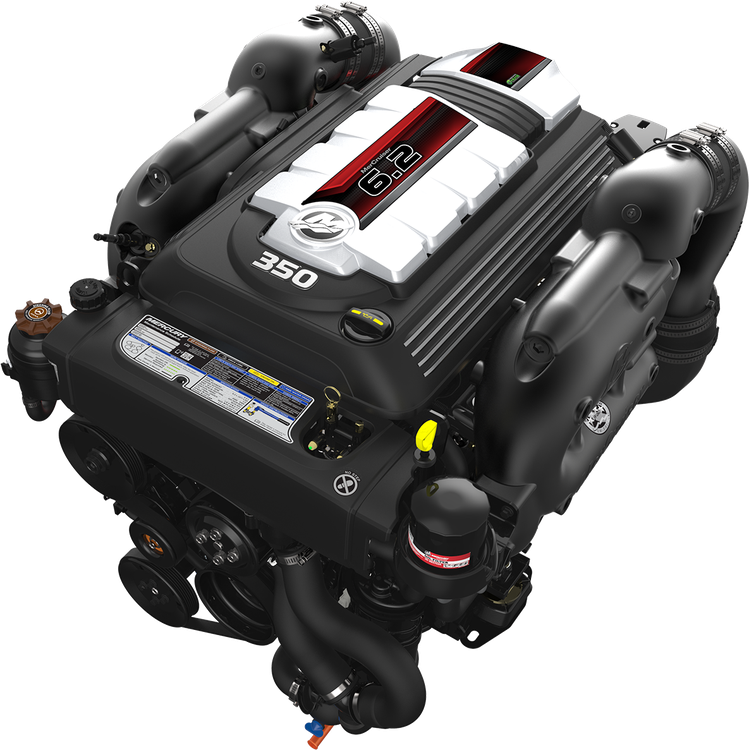

MerCruiser 6.2L

Engine Details

A 6.2-liter V-8 engine with unparalleled torque and acceleration to get you on plane quickly and smoothly.


SPECIFICATION 350HP
HP / kW
  • 350 / 261
Maximum RPM (WOT)
  • 5000 - 5400
Engine type
  • V8, 2-valve/cylinder pushrod
Displacement (CID/L)
  • 377 / 6.2
Bore and stroke
  • 4.0" x 3.75" / 101.6mm x 95.25mm
Fuel requirement
  • 90 RON 10% Ethanol Maximum
  • Unleaded Regular 87 Octane Minimum (R+M/2)
Engine control system
  • Mechanical Shifting with Optional SmartCraft DTS
  • Standard SmartCraft with Electronic Throttle Control
Fuel delivery system
  • Computer controlled Multi-Port Electronic Fuel Injection (MPI)
Air induction
  • Performance-Tuned Scroll Intake Manifold
Ignition
  • SmartCraft PCM 112 Digital Inductive
Water drain system
  • Air Actuated "Season Extender"
Exhaust system
  • Through prop
Cooling system
  • Fresh water cooled available with SeaCore option
  • Water-cooled with thermostat
Lubrication system
  • Integrated wet sump
Recommended oil
  • NMMA Certified FCW 25W-40 Synthetic Blend
Engine guardian system
  • SmartCraft Engine Guardian
Dimensions (L x W x H)
  • 32 x 30 x 22" / 813 x 762 x 559 mm
Weight (engine only)
  • 862 lbs / 391 kg
Compatible drives
  • Bravo One
  • Bravo Three
  • Bravo Two

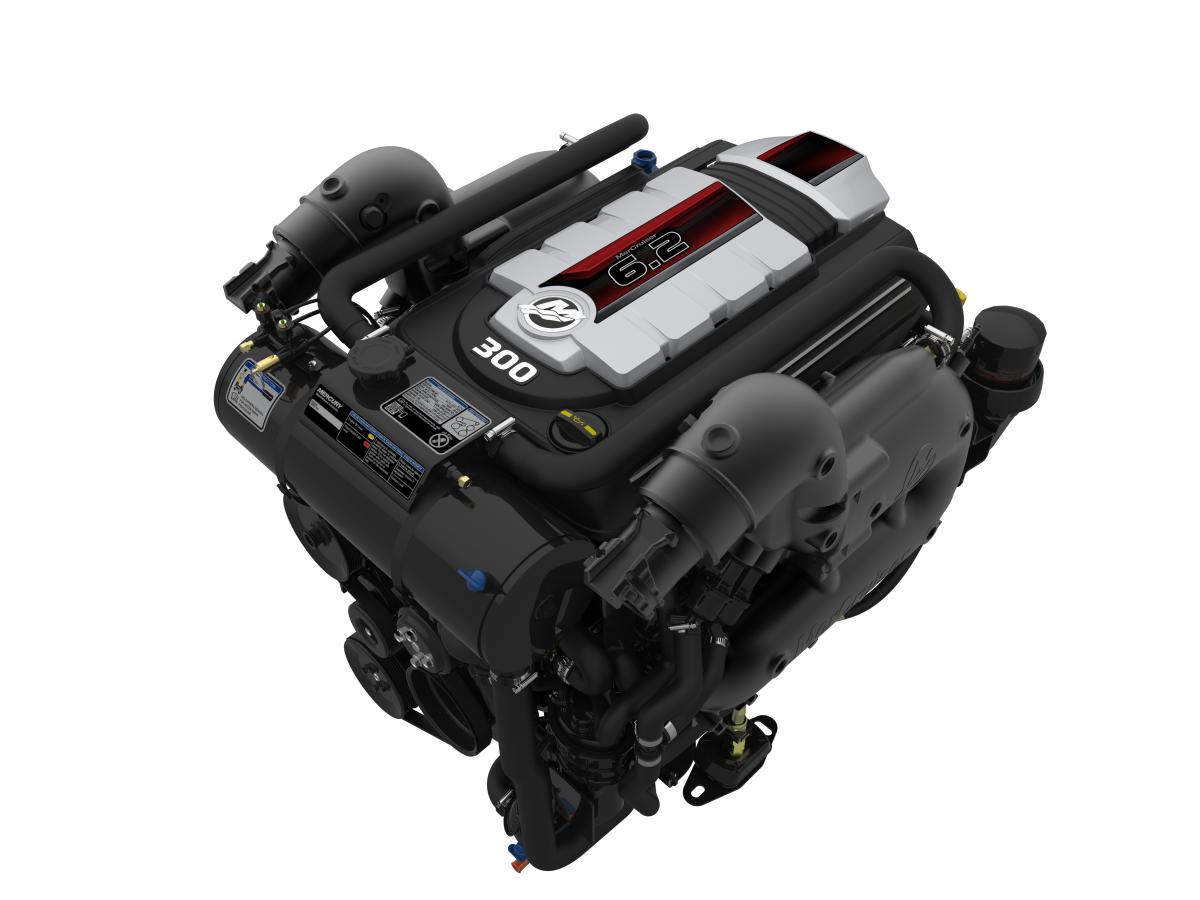

MerCruiser 6.2L

Engine Details

A 6.2-liter V-8 engine with unparalleled torque and acceleration to get you on plane quickly and smoothly.


SPECIFICATION 300HP
HP / kW
  • 300 / 224
Maximum RPM (WOT)
  • 5000 - 5400
Displacement (CID/L)
  • 337 / 6.2
Bore and stroke
  • 4.0" x 3.75" / 101.6mm x 95.25mm
Fuel requirement
  • 90 RON 10% Ethanol Maximum
  • Unleaded Regular 87 Octane Minimum (R+M/2)
Engine control system
  • Mechanical Shifting with Optional SmartCraft DTS
  • Standard SmartCraft with Electronic Throttle Control
Fuel delivery system
  • Computer controlled Multi-Port Electronic Fuel Injection (MPI)
Air induction
  • Performance-Tuned Scroll Intake Manifold
Ignition
  • SmartCraft PCM 112 Digital Inductive
Water drain system
  • Air Actuated "Season Extender"
Exhaust system
  • Through prop
Cooling system
  • Fresh water cooled available with SeaCore option
  • Water-cooled with thermostat
Lubrication system
  • Integrated wet sump
Recommended oil
  • NMMA Certified FCW 25W-40 Synthetic Blend
Engine guardian system
  • SmartCraft Engine Guardian
Dimensions (L x W x H)
  • 32 x 30 x 22" / 813 x 762 x 559 mm
Weight (engine only)
  • 862 lbs / 391 kg
Compatible drives
  • Bravo One
  • Bravo Three
  • Bravo Two

MerCruiser 8.2L

Engine Details

A high-displacement footprint allows the V-8s to work smarter – not harder – with lower max rpm to ensure longer engine life. Engine Guardian is standard and averts potential problems with timely intervention, while the Cool Fuel Module prevents vapor lock.


SPECIFICATIONS 380
HP / kW
  • 380 / 283
Maximum RPM (WOT)
  • 4600 - 5000
Engine type
  • V8
Displacement (L)
  • 8.2
Bore and stroke
  • 4.47 x 4.00" / 113.5 x 101.6 mm
Compression ratio
  • 8.75:1
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Engine control system
  • PCM 09 with SmartCraft CAN capability OBD-M diagnostics Dual oxygen sensors
Fuel delivery system
  • Multi-point Electronic Fuel Injection (MPI)
Air induction
  • High inertia induction system
Ignition
  • Distributorless ignition with knock control
Alternator amp / Watt
  • 65 amp / 917 watt
Water drain system
  • Single point air actuated
Exhaust system
  • Tuned runner exhaust manifolds with 316 stainless steel tubular dry joint elbows
Cooling system
  • Brass sea water pump
  • Closed cooling
  • Long life 5-year antifreeze
Accessory drive system
  • Auto-tensioner
  • Serpentine belt
Recommended oil
  • NMMA Certified FCW 25W-40 Synthetic Blend
Engine guardian system
  • SmartCraft Engine Guardian
Dimensions (L x W x H)
  • 35 x 33 x 24" / 878 x 838 x 610 mm
Weight (engine only)
  • 1,122 lbs / 509 kg
Compatible drives
  • Bravo One X
  • Bravo One XR
  • Bravo Three X
  • Bravo Three XR
  • Bravo Two X

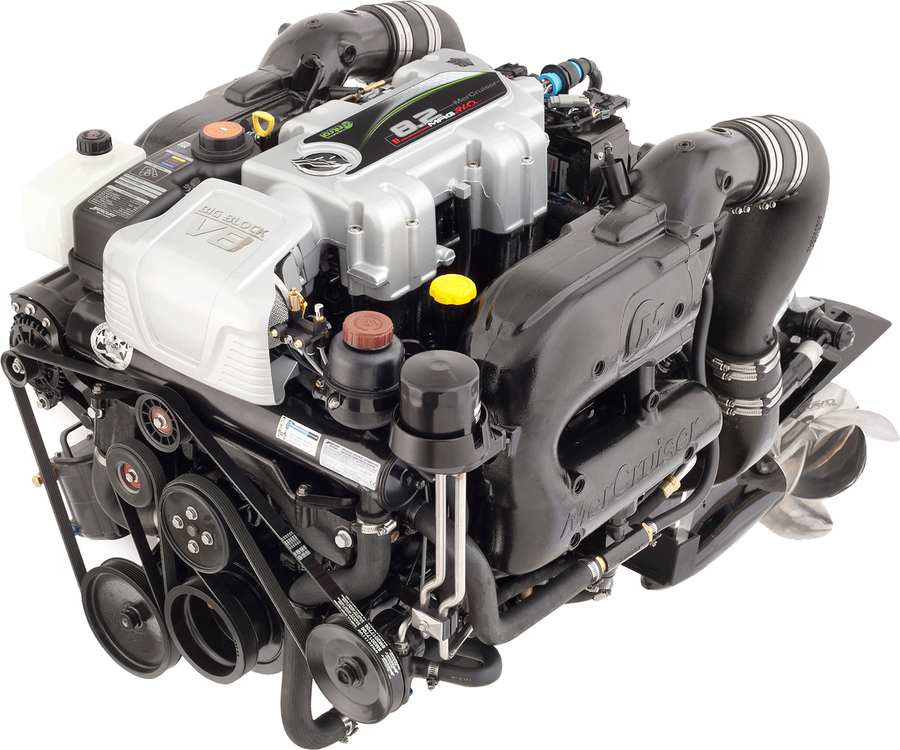

MerCruiser 8.2L

Engine Details

A high-displacement footprint allows the V-8s to work smarter – not harder – with lower max rpm to ensure longer engine life. Engine Guardian is standard and averts potential problems with timely intervention, while the Cool Fuel Module prevents vapor lock.


SPECIFICATIONS 430
HP / kW
  • 430 / 321
Maximum RPM (WOT)
  • 4600 - 5000
Engine type
  • V8
Displacement (L)
  • 8.2
Bore and stroke
  • 4.47 x 4.00" / 113.5 x 101.6 mm
Compression ratio
  • 8.75:1
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Engine control system
  • PCM 09 with SmartCraft CAN capability OBD-M diagnostics Dual oxygen sensors
Fuel delivery system
  • Multi-point Electronic Fuel Injection (MPI)
Air induction
  • High inertia induction system
Ignition
  • Distributorless ignition with knock control
Alternator amp / Watt
  • 65 amp / 917 watt
Water drain system
  • Single point air actuated
Exhaust system
  • Tuned runner exhaust manifolds with 316 stainless steel tubular dry joint elbows
Cooling system
  • Brass sea water pump
  • Closed cooling
  • Long life 5-year antifreeze
Accessory drive system
  • Auto-tensioner
  • Serpentine belt
Recommended oil
  • NMMA Certified FCW 25W-40 Synthetic Blend
Engine guardian system
  • SmartCraft Engine Guardian
Dimensions (L x W x H)
  • 35 x 33 x 24" / 878 x 838 x 610 mm
Weight (engine only)
  • 1,122 lbs / 509 kg
Compatible drives
  • Bravo One X
  • Bravo One XR
  • Bravo Three X
  • Bravo Three XR
  • Bravo Two X
