Seapro 4 Stroke

Engine Details

The new Mercury 300hp SeaPro™ four-stroke outboards provide what you demand to get the job done – plenty of displacement, power, efficiency and durability. The impressive muscle of our new V8 4.6-liter powerheads is specifically designed for commercial duty and delivers our best-ever fuel economy. The one-two combination of ample torque and low weight makes these engines ideal for heavily loaded boats. Advanced Range Optimization (ARO) and closed-loop fuel control work together to precisely adjust the fuel mixture for optimal fuel economy. For commercial workboats and law-enforcement boats.


SPECIFICATIONS - 300 CMS
HP / kW
  • 300/224
Engine type
  • V8
MidSection
  • Conventional MidSection
Displacement (CID/CC)
  • 279 CID
Displacement (L)
  • 4.6L
Cylinder Configuration
  • V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM
  • 4800-5600
Air induction
  • Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
  • Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
  • 85-amp (1071 Watt) with Idle Charge
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW SAE 25W-40 (Optional 10W-30 for Cold Conditions)
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Electric Start with SmartStart Protection
Controls
  • Remote Mechanical or Digital Throttle & Shift (DTS)
Steering
  • Hydraulic (standard)
  • Power (optional)
Shaft length
  • 20" / 508 mm
  • 25" / 635 mm
  • 30" / 762 mm
Gearcase ratio
  • 1.75:1
Dry weight *Lightest model available
  • 527 lbs / 239 kgs
CARB star rating
  • 3
Bore and stroke
  • 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition
  • SmartCraft PCM 112 Digital Inductive
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • 5.44"
Trim system
  • Power trim and tilt
Exhaust system
  • Through prop
Counter Rotation
  • Available
Color
  • Phantom Black
Lubrication system
  • Integrated wet sump
Oil Capacity
  • 7.0 Quarts / 6.6 Liters
Maximum Trim Range
  • 20° (-6° to 14°)
Maximum Tilt Range
  • 73° (-6° to 67°)

Seapro 4 Stroke

Engine Details

The new Mercury 250hp SeaPro™ four-stroke outboards provide what you demand to get the job done – plenty of displacement, power, efficiency and durability. The impressive muscle of our new V8 4.6-liter powerheads is specifically designed for commercial duty and delivers our best-ever fuel economy. The one-two combination of ample torque and low weight makes these engines ideal for heavily loaded boats. Offers simple, seamless repower rigging. Engineered for commercial commercial workboats and law-enforcement boats.


SPECIFICATIONS - 250
HP / kW
  • 250/186
Engine type
  • V8
MidSection
  • Conventional MidSection
Displacement (CID/CC)
  • 279 CID
Displacement (L)
  • 4.6L
Cylinder Configuration
  • V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM
  • 4800-5600
Air induction
  • Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
  • Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
  • 85-amp (1071 Watt) with Idle Charge
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW SAE 25W-40 (Optional 10W-30 for Cold Conditions)
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Electric Start with SmartStart Protection
Controls
  • Remote Mechanical or Digital Throttle & Shift (DTS)
Steering
  • Big Tiller (optional)
  • Hydraulic (standard)
  • Power (optional)
Shaft length
  • 20" / 508 mm
  • 25" / 635 mm
  • 30" / 762 mm
Gearcase ratio
  • 1.75:1
Dry weight *Lightest model available
  • 527 lbs / 239 kgs
CARB star rating
  • 3
Bore and stroke
  • 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition
  • SmartCraft PCM 112 Digital Inductive
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • 5.44"
Trim system
  • Power trim and tilt
Exhaust system
  • Through prop
Counter Rotation
  • Available
Color
  • Phantom Black
Lubrication system
  • Integrated wet sump
Oil Capacity
  • 7.0 Quarts / 6.6 Liters
Maximum Trim Range
  • 20° (-6° to 14°)
Maximum Tilt Range
  • 73° (-6° to 67°)

Seapro 4 Stroke

Engine Details

The new Mercury 225hp SeaPro™ four-stroke outboards provide what you demand to get the job done – plenty of displacement, power, efficiency and durability. The impressive muscle of our new V8 4.6-liter powerheads is specifically designed for commercial duty and delivers our best-ever fuel economy. The one-two combination of ample torque and low weight makes these engines ideal for heavily loaded boats. Mercury engineers strategically trimmed weight to produce some of the lightest engines in the class — by up to 30 pounds — and the powerhead configuration has been optimized to minimize size. Ideal for commercial fishing vessels, commercial workboats and law-enforcement boats.


SPECIFICATIONS - 225
HP / kW
  • 225/168
Engine type
  • V8
MidSection
  • Conventional MidSection
Displacement (CID/CC)
  • 279 CID
Displacement (L)
  • 4.6L
Cylinder Configuration
  • V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM
  • 4800-5600
Air induction
  • Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
  • Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
  • 85-amp (1071 Watt) with Idle Charge
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW SAE 25W-40 (Optional 10W-30 for Cold Conditions)
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Electric Start with SmartStart Protection
Controls
  • Remote Mechanical or Digital Throttle & Shift (DTS)
Steering
  • Big Tiller (optional)
  • Hydraulic (standard)
  • Power (optional)
Shaft length
  • 20" / 508 mm
  • 25" / 635 mm
  • 30" / 762 mm
Gearcase ratio
  • 1.75:1
Dry weight *Lightest model available
  • 527 lbs / 239 kgs
CARB star rating
  • 3
Bore and stroke
  • 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition
  • SmartCraft PCM 112 Digital Inductive
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • 5.44"
Trim system
  • Power trim and tilt
Exhaust system
  • Through prop
Counter Rotation
  • Available
Color
  • Phantom Black
Lubrication system
  • Integrated wet sump
Oil Capacity
  • 7.0 Quarts / 6.6 Liters
Maximum Trim Range
  • 20° (-6° to 14°)
Maximum Tilt Range
  • 73° (-6° to 67°)

Seapro 4 Stroke

Engine Details

The new Mercury 200hp SeaPro four-stroke outboards provide what you demand to get the job done – plenty of displacement, power, efficiency and durability. The impressive muscle of our new V6 3.4-liter powerheads is specifically designed for commercial duty and delivers our best-ever fuel economy. The one-two combination of ample torque and low weight makes these engines ideal for heavily loaded boats.Commercial calibration allows the engine to reach maximum torque well below peak rpm—more power with less stress on the motor, making it the perfect motor for commercial fishing vessels, commercial workboats and law-enforcement boats.


SPECIFICATIONS - 200
HP / kW
  • 200/149
Engine type
  • V6
MidSection
  • Conventional MidSection
Displacement (CID/CC)
  • 209 CID
Displacement (L)
  • 3.4L
Cylinder Configuration
  • V-6 [64 degree] with Dual Overhead Cam [DOHC] and 24-valves
Full throttle RPM
  • 4600-5400
Air induction
  • Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
  • Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
  • 85-amp (1071 Watt) with Idle Charge
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW SAE 25W-40 (Optional 10W-30 for Cold Conditions)
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Electric Start with SmartStart Protection
Controls
  • Remote Mechanical or Digital Throttle & Shift (DTS)
Steering
  • Big Tiller (optional)
  • Hydraulic (standard)
  • Joystick Piloting for Outboards
  • Power (optional)
Shaft length
  • 20" / 508 mm
  • 25" / 635 mm
Gearcase ratio
  • 1.85:1
Dry weight *Lightest model available
  • 483 lbs / 220 kgs
CARB star rating
  • 3
Bore and stroke
  • 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition
  • SmartCraft PCM 112 Digital Inductive
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • 5.44"
Trim system
  • Power trim and tilt
Exhaust system
  • Through prop
Counter Rotation
  • Available
Color
  • Phantom Black
Lubrication system
  • Integrated wet sump
Oil Capacity
  • 7.0 Quarts / 6.6 Liters
Maximum Trim Range
  • 20° (-6° to 14°)
Maximum Tilt Range
  • 73° (-6° to 67°)

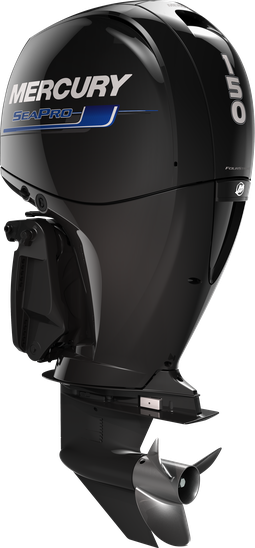

Seapro 4 Stroke

Engine Details

The 150hp SeaPro™ is one tough customer, built to deliver loads of torque and higher durability than any other 150hp outboard. It’s perfect for commercial fishing vessels, commercial workboats and law-enforcement boats.


SPECIFICATIONS - 150
HP / kW
  • 150 / 110
Engine type
  • 8-valve single overhead cam (SOHC)
  • Inline 4
Displacement (L)
  • 3.0
Full throttle RPM
  • 4800-5300
Air induction
  • Performance-Tuned Scroll Intake Manifold
Fuel induction system
  • Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt
  • 60 amp / 756 watt (Belt-Driven)
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW 25W-40 Synthetic Blend
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Electric (turn-key)
  • Smart Start Electric
Controls
  • Mechanical throttle & shift
Steering
  • Big Tiller Compatible
  • Dual cable mechanical
  • Electro-Hydraulic Power Steering Optional on Duals
  • Hydraulic power steering
Shaft length
  • 20" / 508 mm
  • 25" / 635 mm
Gearcase ratio
  • 1.92:1
Dry weight *Lightest model available
  • 455 lbs / 206 kg
CARB star rating
  • 3
Bore and stroke
  • 4.0 x 3.6" / 102 x 92 mm
Ignition
  • SmartCraft ECM 70 Digital Inductive
Fuel system
  • Electronic Fuel Injection (EFI)
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Trim system
  • Power Tilt
  • Power Trim
Exhaust system
  • Through prop
Counter Rotation
  • Available
Color
  • Phantom Black
Lubrication system
  • Wet sump
Oil Capacity
  • 6.3 qts / 6.0l
Maximum Trim Range
  • 22° (-6° to 16°)
Maximum Tilt Range
  • 73° (-6° to 67°)

Seapro 4 Stroke

Engine Details

The SeaPro™ mid-range outboards take working to the next level—uncommonly powerful, uniquely compact, uncompromisingly reliable, and unbelievably fuel efficient. The ultimate in commercial-grade durability, high performance and efficiency in a 115hp package. For for Sports Boats, commercial workboats and law-enforcement boats.


SPECIFICATIONS - 115
HP / kW
  • 115 / 86
Engine type
  • 8-valve single overhead cam (SOHC)
  • Inline 4
Displacement (L)
  • 2.1
Full throttle RPM
  • 5000-5500
Air induction
  • Performance-Tuned Scroll Intake Manifold
Fuel induction system
  • Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt
  • 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW 25W-40 Synthetic Blend
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Smart Start Electric
Controls
  • Mechanical throttle & shift
Steering
  • Big Tiller
  • Dual cable mechanical
  • Electro-Hydraulic Power Steering Optional on Duals
  • Hydraulic
Shaft length
  • 20" / 508 mm
  • 25" / 635 mm
Gearcase ratio
  • 2.38:1
Dry weight *Lightest model available
  • 363 lbs / 165 kg
CARB star rating
  • 3
Bore and stroke
  • 3.5 x 3.2" / 90 x 81 mm
Ignition
  • SmartCraft ECM 70 Digital Inductive
Fuel system
  • Electronic Fuel Injection (EFI)
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • Command Thrust (CT)
Trim system
  • Power Tilt
  • Power Trim
Exhaust system
  • Through prop
Shallow water trim range (degrees)
  • 20
Counter Rotation
  • Available
Color
  • Phantom Black
Lubrication system
  • Wet sump
Oil Capacity
  • 5.5 qts / 5.2l
Maximum Trim Range
  • 22° (-6° to 16°)
Maximum Tilt Range
  • 70° (-6° to 64°)

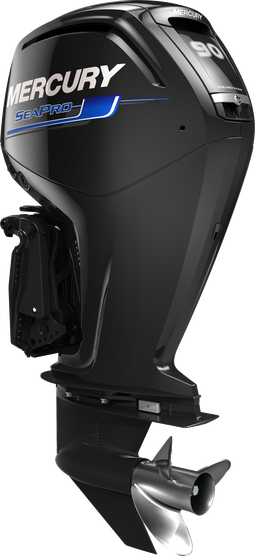

Seapro 4 Stroke

Engine Details

The Mercury 90Hp engine built for you to depend on, offering trouble-free, low-maintenance performance in the harshest working environments. For commercial fishing vessels, commercial workboats, Sports Boats and law-enforcement boats.


SPECIFICATIONS - 90
HP / kW
  • 90 / 67
Engine type
  • 8-valve single overhead cam (SOHC)
  • Inline 4
Displacement (L)
  • 2.1
Full throttle RPM
  • 5000-5500
Air induction
  • Performance-Tuned Scroll Intake Manifold
Fuel induction system
  • Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt
  • 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW 25W-40 Synthetic Blend
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Smart Start Electric
Controls
  • Mechanical throttle & shift
Steering
  • Big Tiller
  • Dual cable mechanical
  • Hydraulic
Shaft length
  • 20" / 508 mm
  • 25" / 635 mm
Gearcase ratio
  • 2.38:1
Dry weight *Lightest model available
  • 363 lbs / 165 kg
CARB star rating
  • 3
Bore and stroke
  • 3.5 x 3.2" / 90 x 81 mm
Ignition
  • SmartCraft ECM 70 Digital Inductive
Fuel system
  • Electronic Fuel Injection (EFI)
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • Command Thrust
Trim system
  • Power Tilt
  • Power Trim
Exhaust system
  • Through prop
Shallow water trim range (degrees)
  • 20
Color
  • Phantom Black
Lubrication system
  • Wet sump
Oil Capacity
  • 5.5 qts / 5.2l
Maximum Trim Range
  • 22° (-6° to 16°)
Maximum Tilt Range
  • 70° (-6° to 64°)

Seapro 4 Stroke

Engine Details

The Mercury 90Hp engine built for Ultra-compact. Ultra-efficient. Ultra-durable. A motor that works hard all day long, day after day, in the toughest conditions. For commercial fishing vessels, commercial workboats and law-enforcement boats.

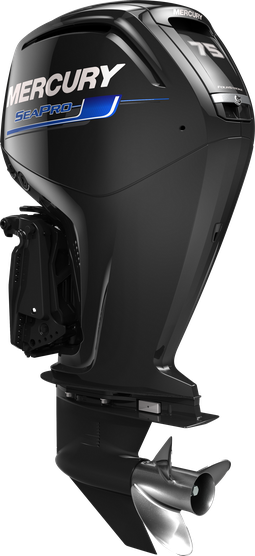

SPECIFICATIONS - 75
HP / kW
  • 75 / 56
Engine type
  • 8-valve single overhead cam (SOHC)
  • Inline 4
Displacement (L)
  • 2.1
Full throttle RPM
  • 5000-5500
Air induction
  • Performance-Tuned Scroll Intake Manifold
Fuel induction system
  • Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt
  • 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW 25W-40 Synthetic Blend
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Smart Start Electric
Controls
  • Mechanical throttle & shift
Steering
  • Big Tiller
  • Dual cable mechanical
  • Hydraulic
Shaft length
  • 20" / 508 mm
Gearcase ratio
  • 2.38:1
Dry weight *Lightest model available
  • 363 lbs / 165 kg
CARB star rating
  • 3
Bore and stroke
  • 3.5 x 3.2" / 90 x 81 mm
Ignition
  • SmartCraft ECM 70 Digital Inductive
Fuel system
  • Electronic Fuel Injection (EFI)
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • Command Thrust
Trim system
  • Power Tilt
  • Power Trim
Exhaust system
  • Through prop
Shallow water trim range (degrees)
  • 20
Color
  • Phantom Black
Lubrication system
  • Wet sump
Oil Capacity
  • 5.5 qts / 5.2l
Maximum Trim Range
  • 22° (-6° to 16°)
Maximum Tilt Range
  • 70° (-6° to 64°)

Seapro 4 Stroke

Engine Details

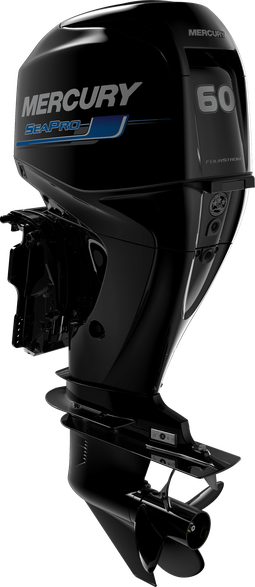

The Mercury SeaPro 60Hp durable, easy-to-maintain SeaPro commercial motors. Validated to three times the engine life of a recreational engine. For commercial fishing vessels, commercial workboats and law-enforcement boats.


SPECIFICATIONS - 60
HP / kW
  • 60 / 45
Engine type
  • 8-valve single overhead cam (SOHC)
  • Inline 4
Displacement (CID/CC)
  • 60.8 / 995
Full throttle RPM
  • 4500-5500
Air induction
  • Performance-Tuned Scroll Intake Manifold
Fuel induction system
  • Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt
  • 18 amp / 226 watt
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW SAE 25W-40
Engine protection operator warning system
  • SmartCraft Engine Guardian
Starting
  • Electric (turn-key)
Controls
  • Mechanical throttle & shift
Steering
  • Big Tiller
  • Remote
Shaft length
  • 20" / 508 mm
  • 22.5" / 572 mm
  • 25" / 635 mm
Gearcase ratio
  • 2.33:1
Dry weight *Lightest model available
  • 260 lbs / 118 kg
Bore and stroke
  • 2.56 x 2.95" / 65 x 75 mm
Ignition
  • SmartCraft ECM 07 Digital Inductive
Cooling system
  • Water-cooled with thermostat
Gearcase options
  • Command Thrust
Trim system
  • Gas Assist available
  • Power Tilt
  • Power Trim
Exhaust system
  • Through prop
Lubrication system
  • Wet sump
Oil Capacity
  • 3.0 qts / 2.8 l

Seapro 4 Stroke

Engine Details

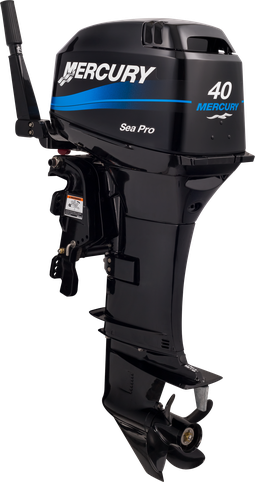

The Mercury SeaPro 40Hp durable, easy-to-maintain SeaPro commercial motors. Validated to three times the engine life of a recreational engine. For commercial fishing vessels, commercial workboats and law-enforcement boats.


SPECIFICATIONS - 40
HP / kW
  • 40 / 30
Engine type
  • 8-valve single overhead cam (SOHC)
  • Inline 4
Displacement (CID/CC)
  • 60.8 / 995
Air induction
  • Performance-Tuned Scroll Intake Manifold
Fuel induction system
  • Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt
  • 18 amp / 226 watt
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW SAE 25W-40
Engine protection operator warning system
  • SmartCraft Engine Guardian
Starting
  • Electric (turn-key)
Controls
  • Mechanical throttle & shift
Steering
  • Big Tiller Compatible
  • Hydraulic
  • Mechanical
Shaft length
  • 20" / 508 mm
  • 22.5" / 572 mm
  • 25" / 635 mm
Gearcase ratio
  • 2.33:1
Dry weight *Lightest model available
  • 260 lbs / 118 kg
Bore and stroke
  • 2.56 x 2.95" / 65 x 75 mm
Ignition
  • SmartCraft ECM 07 Digital Inductive
Cooling system
  • Water-cooled with thermostat
Gearcase options
  • Command Thrust
Trim system
  • Gas Assist available
  • Power Tilt
  • Power Trim
Exhaust system
  • Through prop
Lubrication system
  • Wet sump
Oil Capacity
  • 3.0 qts / 2.8 l

Seapro 4 Stroke

Engine Details

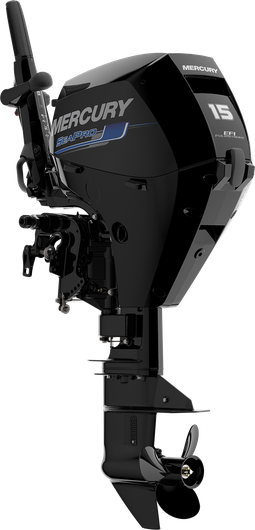

The rugged new SeaPro15hp is designed and built to take on big jobs in smaller boats. It’s engineered to be durable and is designed for extended life of the engine. For commercial fishing vessels, commercial workboats and law-enforcement boats.


SPECIFICATIONS - 15
HP / kW
  • 15 / 11.1
Displacement (CID/CC)
  • 20.3cid / 333cc
Cylinder Configuration
  • I-2
Full throttle RPM
  • 4,500 - 5,500
Fuel induction system
  • Single Overhead Cam
Alternator amp / Watt
  • 12/145 electric
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • 25W-40 Synthetic Blend
  • Mercury FC-W 10W-30 4-Stroke Marine Oil
Engine protection operator warning system
  • SmartCraft Engine Guardian
Starting
  • Electric
  • Manual
Shaft length
  • 15" / 381 mm
  • 20" / 508 mm
Gearcase ratio
  • 2.15:1
Dry weight *Lightest model available
  • 99/45
CARB star rating
  • 3
Bore and stroke
  • 2.40 x 2.24 / 61 x 57
Ignition
  • CDI w/electronic spark advance
Fuel system
  • Electronic Fuel Injection (EFI)
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Trim system
  • Manual
Trim positions
  • 6 MANUAL
Exhaust system
  • Through prop
Shallow water drive
  • Yes
Remote fuel tank (optional)
  • Yes
Remote fuel tank standard (gal / L)
  • 6.6 / 25

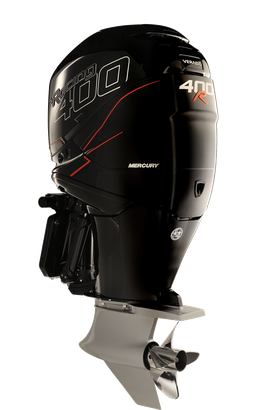

Verado 4 Stroke

Engine Details

Setting a new standard in performance. The supercharged Verado 400R has enough power to quicken your pulse with an adrenalinr rush.High-end finishes and top-of-the-line engineering allow you to experience rocket-like power like never before. Perfect for bass,deck,rigid, full inflatable,multi-species fish,off-shore fishing, race and runabout boats,and pontoons,tritoons and catamarans.


SPECIFICATIONS - 400R
HP / kW
  • 400/298
Engine type
  • Inline 6
Displacement (L)
  • 2.6
Full throttle RPM
  • 6400-7000
Air induction
  • Supercharged with charge air cooling and electronic boost pressure control
Fuel induction system
  • Sequential multi-port electronic fuel injection (EFI)
Alternator amp / Watt
  • 70 amp / 882 watt (Belt-Driven)
Recommended fuel
  • Unleaded 95RON minimum
Recommended oil
  • SAE 25W-50 FC-W synthetic blend racing oil
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Smart Start Electric
Controls
  • SmartCraft Digital
Steering
  • Electro-hydraulic power steering
Shaft length
  • 20" / 508 mm
  • 25" / 635 mm
  • 30" / 762 mm
Gearcase ratio
  • 1.75:1
Dry weight *Lightest model available
  • 668 lbs / 303 kg
Emissions Star Rating
  • 3
Gearcase options
  • 5.44"
Trim system
  • Power trim and tilt with SmartCraft programmable tilt
Counter Rotation
  • Available
Color
  • Phantom Black
  • White

Verado 4 Stroke

Engine Details

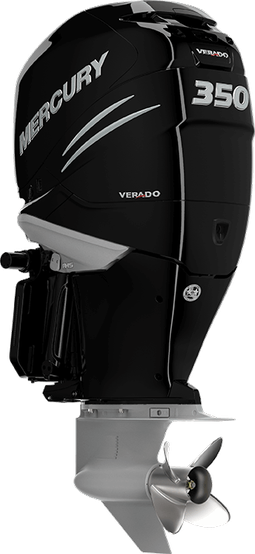

Weighing in at an impressive 95 pounds lighter than its competition, the inline six-cylinder Verado 350 virtually eliminates vibration in the boat. Great for offshore fishing, bass, deck, and pilot house boats and pontoons.


SPECIFICATIONS - 350
HP / kW
  • 350 / 257
Engine type
  • Inline 6
Displacement (L)
  • 2.6
Full throttle RPM
  • 5800-6400
Air induction
  • Supercharged with charge air cooling and electronic boost pressure control
Fuel induction system
  • Sequential multi-port electronic fuel injection (EFI)
Alternator amp / Watt
  • 70 amp / 882 watt (Belt-Driven)
Recommended fuel
  • Unleaded 95 RON for premium performance (91 RON Minimum)
Recommended oil
  • Mercury FourStroke 25W40 Marine Oil
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Smart Start Electric
Controls
  • SmartCraft Digital
Steering
  • Electro-hydraulic power steering
Shaft length
  • 20" / 508 mm
  • 25" / 635 mm
  • 30" / 762 mm
Gearcase ratio
  • 1.75:1
Dry weight *Lightest model available
  • 668 lbs / 303 kg
CARB star rating
  • 2
Gearcase options
  • 5.44"
Trim system
  • Power trim and tilt with SmartCraft programmable tilt
Counter Rotation
  • Available
Color
  • Cold Fusion White
  • Phantom Black
  • Warm Fusion White

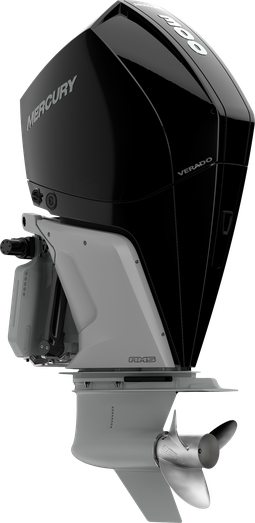

Verado 4 Stroke

Engine Details

Lighter than its competition yet built to withstand the rigors of saltwater operation. For go-fast boats and commercial offshore operations that operate in rough seas or need more speed. Great for deck, inflatable rigid hull, inshore fishing, multi-species fishing, offshore fishing, and runabout cuddy boats, and tritoons.


SPECIFICATIONS - 300
HP / kW
  • 300 / 224
Engine type
  • V8
Displacement (CID/CC)
  • 279 CID
Displacement (L)
  • 4.6L
Cylinder Configuration
  • V8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM
  • 5200-6000
Air induction
  • Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
  • Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
  • 115-amp (1449 Watt) with Idle Charge
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW SAE 10W-30
Engine protection operator warning system
  • SmartCraft Engine Guardian
Starting
  • Electric Start with SmartStart Protection
Controls
  • Standard: Digital Throttle & Shift (DTS)
Steering
  • Integrated Electro-Hydraulic Power-Steering
Shaft length
  • 20" / 508 mm
  • 25" / 635 mm
  • 30" / 762 mm
Gearcase ratio
  • 1.75:1 / 1.85:1
Dry weight *Lightest model available
  • 600 lbs / 272 kgs
CARB star rating
  • 3
Bore and stroke
  • 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition
  • SmartCraft PCM 112 Digital Inductive
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • 5.44"
Trim system
  • Power trim and tilt
Exhaust system
  • Through prop
Color
  • Cold Fusion White
  • Pearl Fusion White
  • Phantom Black
  • Warm Fusion White
Lubrication system
  • Integrated wet sump
Oil Capacity
  • 7.0 Quarts / 6.6 Liters
Maximum Trim Range
  • 20° (-6° to 14°)
Maximum Tilt Range
  • 73° (-6° to 67°)

Verado 4 Stroke

Engine Details

Built tough to withstand the rigors of saltwater operation, no outboard in the class offers more displacement. Great for deck, inflatable rigid hull, inshore fishing, multi-species fishing, offshore fishing, and runabout cuddy boats and tritoons.


SPECIFICATIONS - 250
HP / kW
  • 250 / 186
Engine type
  • V8
Displacement (CID/CC)
  • 279 CID
Displacement (L)
  • 4.6L
Cylinder Configuration
  • V8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM
  • 5200-6000
Air induction
  • Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
  • Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
  • 115-amp (1449 Watt) with Idle Charge
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • NMMA Certified FCW SAE 10W-30
Engine protection operator warning system
  • SmartCraft Engine Guardian
Starting
  • Electric Start with SmartStart Protection
Controls
  • Standard: Digital Throttle & Shift (DTS)
Steering
  • Integrated Electro-Hydraulic Power-Steering
Shaft length
  • 20" / 508 mm
  • 25" / 635 mm
  • 30" / 762 mm
Gearcase ratio
  • 1.85:1
Dry weight *Lightest model available
  • 600 lbs / 272 kgs
CARB star rating
  • 3
Bore and stroke
  • 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition
  • SmartCraft PCM 112 Digital Inductive
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • 5.44"
Trim system
  • Power trim and tilt
Exhaust system
  • Through prop
Color
  • Cold Fusion White
  • Pearl Fusion White
  • Phantom Black
  • Warm Fusion White
Oil Capacity
  • 7.0 Quarts / 6.6 Liters
Maximum Trim Range
  • 20° (-6° to 14°)
Maximum Tilt Range
  • 73° (-6° to 67°)

Portable 4 Stroke

Engine Details

The Mercury 40 EFI 4S outboards deliver reliable turnkey starts, improved fuel efficiency, and instant throttle response.

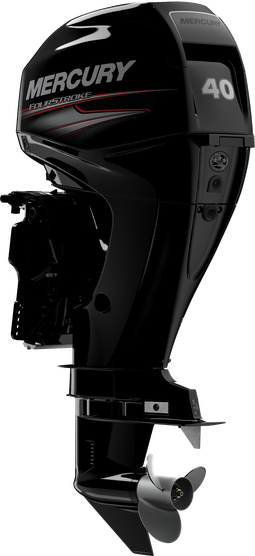

SPECIFICATIONS - 40 3-CYLINDER
HP / kW
  • 40 / 30
Engine type
  • Inline 3
Displacement (L)
  • 0.747
Full throttle RPM
  • 5500-6000
Fuel induction system
  • 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt
  • 18 amp / 226 watt
Starting
  • Manual
Steering
  • Big Tiller
  • Remote
  • Tiller
Shaft length
  • 15" / 381 mm
  • 20" / 508 mm
Gearcase ratio
  • 2.00:1

Portable 4 Stroke

Engine Details

The Mercury 30 EFI 4S Engines delivers consistent, easy starting, crisp throttle response, increased fuel economy, and outstanding overall performance. Great for Inflatable Boats, utility, and fish & ski boats.

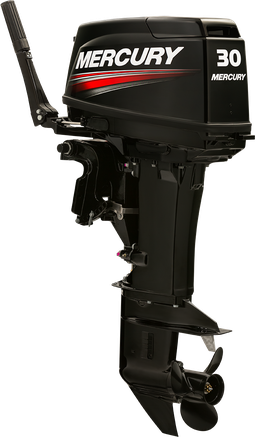

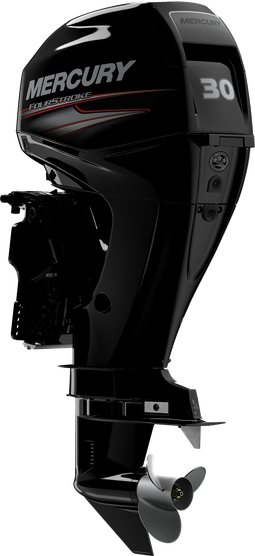

SPECIFICATIONS - 30 EFI
HP / kW
  • 30 / 22.4
Engine type
  • Inline 3
Displacement (CID/CC)
  • 32.1 / 526
Full throttle RPM
  • 5250-6250
Fuel induction system
  • 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt
  • 15 amp / 186 watt
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • Low oil pressure
  • Over-rev
  • Overheat
  • Sensor failure
Starting
  • Electric (turn-key)
  • Manual

Portable 4 Stroke

Engine Details

The Mercury 25 EFI 4S Engines delivers consistent, easy starting, crisp throttle response, increased fuel economy, and outstanding overall performance. Great for Inflatable Boats, utility, and fish & ski boats.

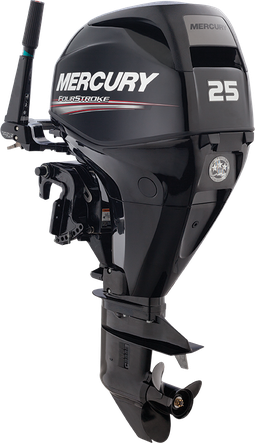

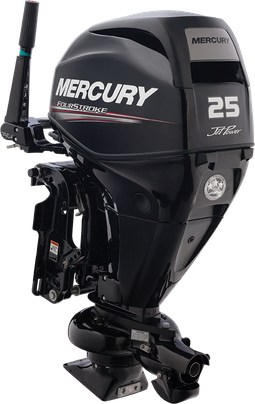

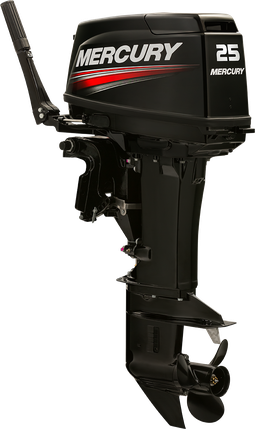

SPECIFICATIONS - 25 EFI
HP / kW
  • 25 / 18.6
Engine type
  • Inline 3
Displacement (CID/CC)
  • 32.1 / 526
Full throttle RPM
  • 5000-6000
Fuel induction system
  • 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt
  • 15 amp / 186 watt
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • Low oil pressure
  • Over-rev
  • Overheat
  • Sensor failure
Starting
  • Electric (turn-key)
  • Manual

Portable 4 Stroke

Engine Details

Ultra-lightweight (just 99 pounds) and reliable, with little vibration. Innovative tiller lets you lock the tiller at 73 degrees – great for fishing and trailering. Perfect for aluminum tiller, inflatable soft hull, jon, utility, and sail boats.


SPECIFICATIONS - 20 EFI
HP / kW
  • 20 / 14.7
Engine type
  • Inline 2
Displacement (CID/CC)
  • 20.3 / 333
Full throttle RPM
  • 5700 - 6200
Fuel induction system
  • Single Overhead Cam
Alternator amp / Watt
  • 12/145 electric
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • 25W-40 Synthetic Blend
  • Mercury FC-W 10W-30 4-Stroke Marine Oil
Engine protection operator warning system
  • Low oil pressure
  • Low water pressure
  • Over-rev
  • Overheat
  • Sensor failure
Starting
  • Electric
  • Manual

Portable 4 Stroke

Engine Details

Low weight and awesome torque get your boat on plane quicker and provide best-in-class acceleration to complement best-in-class top speed. A perfect match for aluminum tiller, soft-hull inflatable, jon / utlity, or sail boats.


SPECIFICATIONS - 15 EFI
HP / kW
  • 15 / 11.1
Engine type
  • Inline 2
Displacement (CID/CC)
  • 20.3 / 333
Full throttle RPM
  • 5700 - 6200
Fuel induction system
  • 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt
  • 12/145 electric
Recommended fuel
  • 87 octane compatible (up to 10% ethanol)
Recommended oil
  • 25W-40 Synthetic Blend
  • Mercury FC-W 10W-30 4-Stroke Marine Oil
Engine protection operator warning system
  • Low oil pressure
  • Over-rev
  • Overheat
  • Sensor failure
Starting
  • Electric
  • Manual

Portable 4 Stroke

Engine Details

Built to deliver the type of power, thrust, and control that wider, heavier boats require. Great for aluminum tiller, inflatable soft hull, jon, utility, and sail boats.

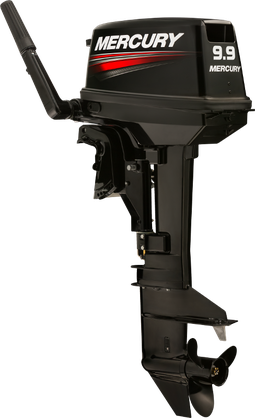

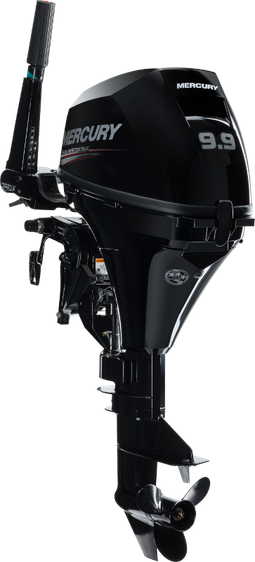

SPECIFICATIONS - 9.9
HP / kW
  • 9.9 / 7.3
Engine type
  • Inline 2
Displacement (CID/CC)
  • 12.8 / 208
Full throttle RPM
  • 5000-6000
Fuel induction system
  • 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt
  • 6 amp / 76 watt
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • Low oil pressure
  • Over-rev
Starting
  • Electric
  • Manual

Portable 4 Stroke

Engine Details

Enhancements include simplified starting procedure, faster warmup, and better idle run quality. Lightweight: just 84 pounds. Great for aluminum tiller, inflatable soft hull, jon, utility, and sail boats.

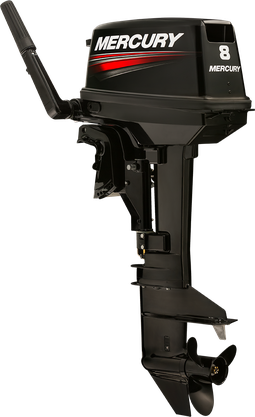

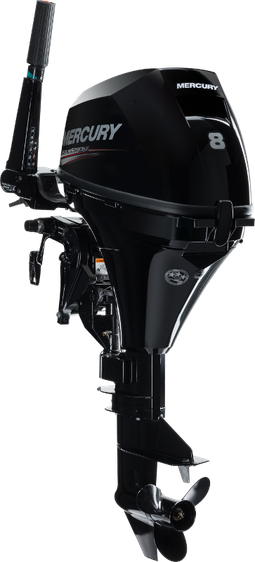

SPECIFICATIONS - 8
HP / kW
  • 8 / 5.9
Engine type
  • Inline 2
Displacement (CID/CC)
  • 12.8 / 208
Full throttle RPM
  • 5000-6000
Fuel induction system
  • 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt
  • 6 amp / 76 watt
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • Low oil pressure
  • Over-rev
Starting
  • Electric
  • Manual
Steering
  • Tiller
Shaft length
  • 15" / 381 mm
  • 20" / 508 mm
Gearcase ratio
  • 2.08:1
Dry weight *Lightest model available
  • 84 lbs / 38 kg
CARB star rating
  • 3
Bore and stroke
  • 2.16 x 1.73" / 55 x 44 mm
Ignition
  • CDI w/electronic spark advance
Fuel system
  • Carbureted
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • Standard
Trim positions
  • Ratcheting
Exhaust system
  • Through prop
Shallow water drive
  • Yes
Shallow water trim range (degrees)
  • 16
Remote fuel tank standard (gal / L)
  • 3.2 / 12
Color
  • Phantom Black

Portable 4 Stroke

Engine Details

Feature integral fuel tanks with an external fuel-shutoff valve. For extended range, they can also be connected to a remote fuel tank. Great for aluminum tiller, inflatable soft hull, jon, utility, and sail boats.

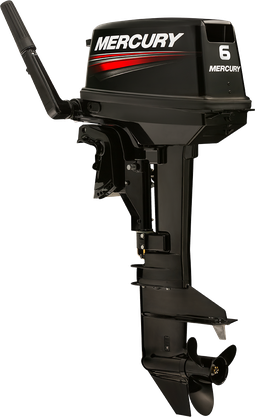

SPECIFICATIONS - 6
HP / kW
  • 6 / 4.4
Engine type
  • 1 cylinder
Displacement (CID/CC)
  • 7.5 / 123
Full throttle RPM
  • 5000-6000
Fuel induction system
  • 2-valve pushrod (overhead valve)
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • Low oil pressure
  • Over-rev
Starting
  • Manual
Steering
  • Tiller
Shaft length
  • 15" / 381 mm
  • 20" / 508 mm
Gearcase ratio
  • 2.15:1
Dry weight *Lightest model available
  • 57 lbs / 26 kg
CARB star rating
  • 3
Bore and stroke
  • 2.32 x 1.77" / 59 x 45 mm
Ignition
  • CDI w/electronic spark advance
Fuel system
  • Carbureted
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • Standard
Trim positions
  • 6
Exhaust system
  • Through prop
Shallow water drive
  • Yes
Shallow water trim range (degrees)
  • 16
Integrated fuel tank (gal / L)
  • 0.3 / 1.1
Optional fuel tank (gal / L)
  • 3.2 / 12
Color
  • Phantom Black

Portable 4 Stroke

Engine Details

Multiple trim positions to enhance performance and enable shallow-water operation. Through-prop exhaust makes it extra quiet. Lightweight: just 57 pounds. Great for aluminum tiller, inflatable soft hull, jon, utility, and sail boats.

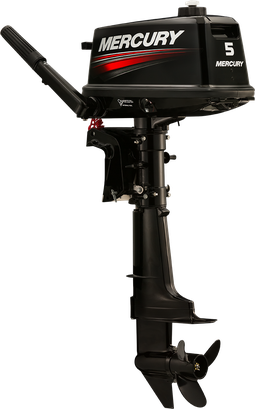

SPECIFICATIONS - 5
HP / kW
  • 5 / 3.7
Engine type
  • 1 cylinder
Displacement (CID/CC)
  • 7.5 / 123
Full throttle RPM
  • 4500-5500
Fuel induction system
  • 2-valve pushrod (overhead valve)
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • Low oil pressure
  • Over-rev
Starting
  • Manual
Steering
  • Tiller
Shaft length
  • 15" / 381 mm
  • 25" / 635 mm
Gearcase ratio
  • 2.15:1
Dry weight *Lightest model available
  • 57 lbs / 26 kg
CARB star rating
  • 3
Bore and stroke
  • 2.32 x 1.77" / 59 x 45 mm
Ignition
  • CDI w/electronic spark advance
Fuel system
  • Carbureted
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • Standard
Trim positions
  • 6
Exhaust system
  • Through prop
Shallow water drive
  • Yes
Shallow water trim range (degrees)
  • 16
Integrated fuel tank (gal / L)
  • 0.3 / 1.1
Optional fuel tank (gal / L)
  • 3.2 / 12
Color
  • Phantom Black

Portable 4 Stroke

Engine Details

This lightweight motor features through-prop exhaust for extra-quiet operation. Great for aluminum tiller, inflatable soft hull, jon, utility, and sail boats.

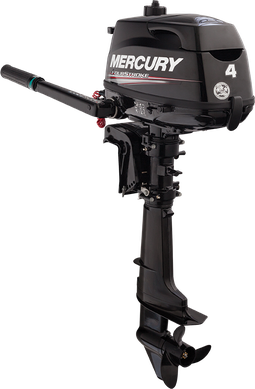

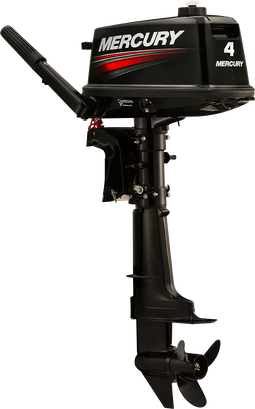

SPECIFICATIONS - 4
HP / kW
  • 4 / 2.9
Engine type
  • 1 cylinder
Displacement (CID/CC)
  • 7.5 / 123
Full throttle RPM
  • 4500-5500
Fuel induction system
  • 2-valve pushrod (overhead valve)
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • Low oil pressure
  • Over-rev
Starting
  • Manual
Steering
  • Tiller
Shaft length
  • 15" / 381 mm
  • 20" / 508 mm
Gearcase ratio
  • 2.15:1
Dry weight *Lightest model available
  • 57 lbs / 26 kg
CARB star rating
  • 3
Bore and stroke
  • 2.32 x 1.77" / 59 x 45 mm
Ignition
  • CDI w/electronic spark advance
Fuel system
  • Carbureted
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • Standard
Trim positions
  • 6
Exhaust system
  • Through prop
Shallow water drive
  • Yes
Shallow water trim range (degrees)
  • 16
Integrated fuel tank (gal / L)
  • 0.3 / 1.1
Optional fuel tank (gal / L)
  • 3.2 / 12
Color
  • Phantom Black

Portable 4 Stroke

Engine Details

Delivers lightweight, portable power and thrust for exact operation. Perfect for aluminum tiller, inflatable soft hull, jon, utility, and sail boats.

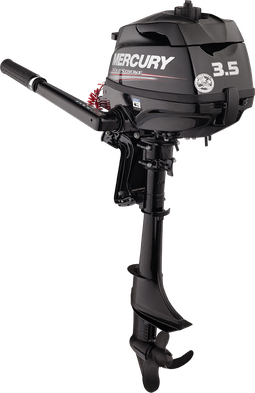

SPECIFICATIONS - 3.5
HP / kW
  • 3.5 / 2.6
Engine type
  • 1 cylinder
Displacement (CID/CC)
  • 5.2 / 85
Full throttle RPM
  • 5000-6000
Fuel induction system
  • 2-valve pushrod (overhead valve)
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • Over-rev
Starting
  • Manual
Steering
  • Tiller with 360° turning
Shaft length
  • 15" / 381 mm
  • 20" / 508 mm
Gearcase ratio
  • 2.15:1
Dry weight *Lightest model available
  • 41 lbs / 18 kg
CARB star rating
  • 3
Bore and stroke
  • 2.16 x 1.42" / 55 x 36 mm
Ignition
  • CDI w/electronic spark advance
Fuel system
  • Carbureted
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N
Gearcase options
  • Standard
Trim system
  • 4 position
Trim positions
  • 4
Exhaust system
  • Above prop
Shallow water trim range (degrees)
  • 16
Integrated fuel tank (gal / L)
  • 0.3 / 1.1
Color
  • Phantom Black

Portable 4 Stroke

Engine Details

Weighing in at just 38 pounds, this compact, reliable motor is a great choice for aluminum tiller, inflatable soft hull, jon, utility, and sail boats.


SPECIFICATIONS - 2.5
HP / kW
  • 2.5 / 1.9
Engine type
  • 1 cylinder
Displacement (CID/CC)
  • 5.2 / 85
Full throttle RPM
  • 4500-5500
Fuel induction system
  • 2-valve pushrod (overhead valve)
Recommended fuel
  • 87 octane compatible (up to 10% ethanol)
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • Over-rev
Starting
  • Manual
Steering
  • Tiller with 360° turning
Shaft length
  • 15" / 381 mm
Gearcase ratio
  • 2.15:1
Dry weight *Lightest model available
  • 41 lbs / 18 kg
CARB star rating
  • 3
Bore and stroke
  • 2.16 x 1.42" / 55 x 36 mm
Ignition
  • CDI w/electronic spark advance
Fuel system
  • Carbureted
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N
Gearcase options
  • Standard
Trim system
  • 4 position
Trim positions
  • 4
Exhaust system
  • Above prop
Shallow water trim range (degrees)
  • 16
Integrated fuel tank (gal / L)
  • 0.3 / 1.1
Color
  • Phantom Black

50HP 697CC 40HP Super 30HP 25HP 15HP 9.9HP 8HP 6HP 5HP 4HP 3.3HP

2 Stroke OBM

Engine Details

The TwoStroke line includes the highest displacement engines in their horsepower classifications, plus they give outstanding power to weight ratios for best performance at all speeds.

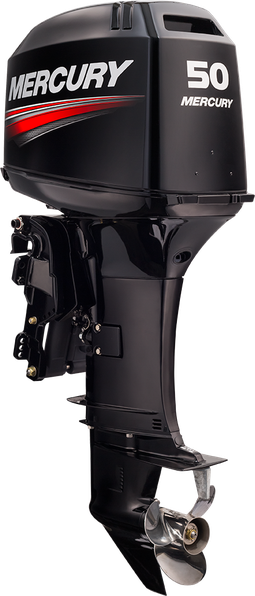

SPECIFICATIONS - 50 697CC
HP / kW
  • 50 / 37.3
Displacement (CID/CC)
  • 42.5 / 697
Cylinder Configuration
  • I-3
Full throttle RPM
  • 5150-5850
Fuel induction system
  • Loop-charged (3 carb)
Starting
  • Manual
Steering
  • Tiller
Gearcase ratio
  • 1.85 : 1
Dry weight *Lightest model available
  • 72 kg
Bore and stroke
  • 68mm x 64mm

2 Stroke OBM

Engine Details

Electric CDI ignition delivers high voltage for quick, sure starts and added fuel efficiency. Innovative sound attenuator helps absorb engine sounds before they can reach the ear, resulting in a quieter running engine on the TwoStroke 40 hp and higher models.

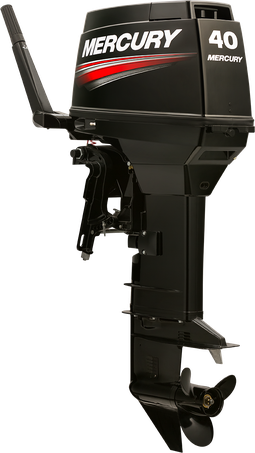

SPECIFICATIONS - 40 SUPER
HP / kW
  • 40 / 29.8
Displacement (CID/CC)
  • 42.5 / 697
Cylinder Configuration
  • I-3
Full throttle RPM
  • 5000 - 5700
Fuel induction system
  • Loop-charged (3 carb)
Starting
  • Electric
  • Manual
Steering
  • Remote
  • Tiller
Shaft length
  • 15" / 381 mm
  • 20" / 508 mm
Gearcase ratio
  • 1.85 : 1
Dry weight *Lightest model available
  • 72 kg

2 Stroke OBM

Engine Details

The TwoStroke line includes the highest displacement engines in their horsepower classifications, plus they give outstanding power to weight ratios for best performance at all speeds.


SPECIFICATIONS - 30
HP / kW
  • 30 / 22.5
Displacement (CID/CC)
  • 26.3 / 430
Cylinder Configuration
  • I-2
Full throttle RPM
  • 4750-5500
Fuel induction system
  • Loop-charged (1 carb)
Starting
  • Electric
  • Manual
Steering
  • Remote
  • Tiller
Shaft length
  • 15" / 381 mm
  • 20" / 508 mm
Gearcase ratio
  • 1.92:1
Dry weight *Lightest model available
  • 51 kg

2 Stroke OBM

Engine Details

The TwoStroke line includes the highest displacement engines in their horsepower classifications, plus they give outstanding power to weight ratios for best performance at all speeds.


SPECIFICATIONS - 25
HP / kW
  • 25 / 18.4
Displacement (CID/CC)
  • 26.3 / 430
Cylinder Configuration
  • I-2
Full throttle RPM
  • 5000-6000
Fuel induction system
  • Loop-charged (1 carb)
Starting
  • Electric
  • Manual
Steering
  • Remote
  • Tiller
Shaft length
  • 15" / 381 mm
  • 20" / 508 mm
Gearcase ratio
  • 1.92 : 1
Dry weight *Lightest model available
  • 51 kg

2 Stroke OBM

Engine Details

The TwoStroke line includes the highest displacement engines in their horsepower classifications, plus they give outstanding power to weight ratios for best performance at all speeds.


SPECIFICATIONS - 15 SUPER
HP / kW
  • 15 / 11.4
Displacement (CID/CC)
  • 17.9 / 294
Cylinder Configuration
  • I-2
Full throttle RPM
  • 5200 - 5800
Fuel induction system
  • Loop-charged (1 carb)
Starting
  • Manual
Steering
  • Tiller
Shaft length
  • 15" / 381 mm
  • 20" / 508 mm
Gearcase ratio
  • 1.85 : 1
Dry weight *Lightest model available
  • 41 kg

2 Stroke OBM

Engine Details

The TwoStroke line includes the highest displacement engines in their horsepower classifications, plus they give outstanding power to weight ratios for best performance at all speeds.


SPECIFICATIONS - 9.9 LW
HP / kW
  • 9.9 / 7.2
Engine type
  • Inline 2
Displacement (CID/CC)
  • 10.3 / 169
Cylinder Configuration
  • I-2
Full throttle RPM
  • 5000 - 6000
Fuel induction system
  • Loop-charged (1 carb)
Alternator amp / Watt
  • 7 amp / 80 watt
Recommended fuel
  • Pre-Mix 50:1
Recommended oil
  • 2-Cycle TC-W3
Starting
  • Electric
  • Manual

2 Stroke OBM

Engine Details

8hp Mercury portable TwoStroke engines are lightweight and powerful, start easily with the modular electronic ignition and are part of the widest choice of portable power in the industry.


SPECIFICATIONS - 8
HP / kW
  • 8 / 6
Displacement (CID/CC)
  • 10.3 / 169
Cylinder Configuration
  • I-2
Full throttle RPM
  • 4500 - 5500
Fuel induction system
  • Loop-charged (1 carb)
Starting
  • Manual
Steering
  • Tiller
Shaft length
  • 15" / 381 mm
  • 20" / 508 mm
Gearcase ratio
  • 2.08 : 1
Dry weight *Lightest model available
  • 26 kg

2 Stroke OBM

Engine Details

6 hp Mercury portable TwoStroke engines are lightweight and powerful, start easily with the modular electronic ignition and are part of the widest choice of portable power in the industry.


SPECIFICATIONS - 6
HP / kW
  • 6 / 4.5
Displacement (CID/CC)
  • 10.3 / 169
Cylinder Configuration
  • I-2
Full throttle RPM
  • 4500 - 5500
Fuel induction system
  • Loop-charged (1 carb)
Starting
  • Manual
Steering
  • Tiller
Shaft length
  • 15" / 381 mm
  • 20" / 508 mm
Gearcase ratio
  • 2.08 : 1
Dry weight *Lightest model available
  • 26 kg
Bore and stroke
  • 50mm x 43mm
Trim positions
  • 6
Oil Injection
  • Pre-mix

2 Stroke OBM

Engine Details

5hp Mercury portable TwoStroke engines are lightweight and powerful, start easily with the modular electronic ignition and are part of the widest choice of portable power in the industry.


SPECIFICATIONS - 5
HP / kW
  • 5 / 3.7
Displacement (CID/CC)
  • 6.2 / 102
Cylinder Configuration
  • 1
Full throttle RPM
  • 4000 - 5000
Fuel induction system
  • Loop-charged (1 carb)
Starting
  • Manual
Steering
  • Tiller
Shaft length
  • 15" / 381 mm
  • 20" / 508 mm
Gearcase ratio
  • 2.15 : 1
Dry weight *Lightest model available
  • 20 kg
Bore and stroke
  • 55 x 43
Trim positions
  • 6
Oil Injection
  • Pre-mix

2 Stroke OBM

Engine Details

4 hp Mercury portable TwoStroke engines are lightweight and powerful, start easily with the modular electronic ignition and are part of the widest choice of portable power in the industry.


SPECIFICATIONS - 4
HP / kW
  • 4 / 3
Displacement (CID/CC)
  • 6.2 / 102
Cylinder Configuration
  • 1
Full throttle RPM
  • 4500 - 5500
Fuel induction system
  • Loop-charged (1 carb)
Starting
  • Manual
Steering
  • Tiller
Shaft length
  • 15" / 381 mm
Gearcase ratio
  • 2.15 : 1
Dry weight *Lightest model available
  • 20 kg

2 Stroke OBM

Engine Details

The TwoStroke line includes the highest displacement engines in their horsepower classifications, plus they give outstanding power to weight ratios for best performance at all speeds.

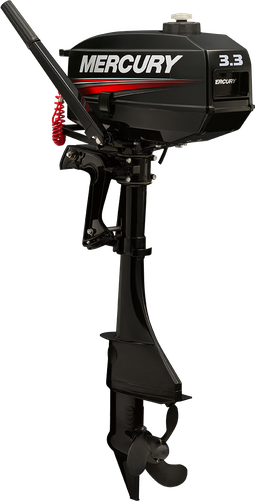

SPECIFICATIONS - 3.3
HP / kW
  • 3.3 / 2.5
Displacement (CID/CC)
  • 4.6 / 74.6
Cylinder Configuration
  • 1
Full throttle RPM
  • 4500 - 5500
Fuel induction system
  • Loop-charged (1 carb)
Starting
  • Manual
Steering
  • Tiller with 360° turning
Shaft length
  • 15" / 381 mm
Gearcase ratio
  • 2.15 : 1
Dry weight *Lightest model available
  • 13 kg

Jet Outboards

Engine Details

Mercury® jet-drive outboards are specifically designed to pilot boats in shallow waters where propeller-driven hulls are unable to operate.

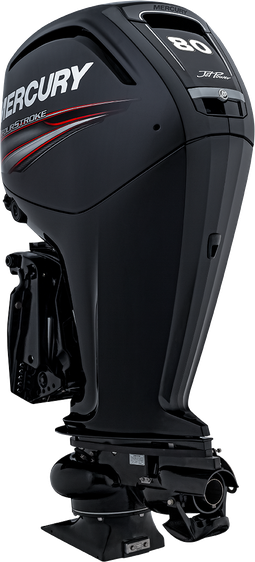

SPECIFICATIONS - 80
HP / kW
  • 80 / 60
Engine type
  • 8-valve single overhead cam (SOHC)
  • Inline 4
Displacement (L)
  • 2.1
Full throttle RPM
  • 5000-6000
Air induction
  • Performance-Tuned Scroll Intake Manifold
Fuel induction system
  • Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt
  • 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Smart Start Electric
Controls
  • Mechanical throttle & shift
Steering
  • Big Tiller Compatible
  • Dual cable mechanical
  • Hydraulic
Shaft length
  • 20" / 508 mm
Gearcase ratio
  • 1.00:1
Dry weight *Lightest model available
  • 378 lbs / 171 kg
CARB star rating
  • 3
Bore and stroke
  • 3.5 x 3.2" / 90 x 81 mm
Ignition
  • SmartCraft ECM 70 Digital Inductive
Fuel system
  • Electronic Fuel Injection (EFI)
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • Jet Drive
Trim system
  • Power Tilt
  • Power Trim
Exhaust system
  • Through jet
Shallow water trim range (degrees)
  • 20
Color
  • Phantom Black
Lubrication system
  • Integrated Dry Sump
Oil Capacity
  • 5.5 qts / 5.2 l
Maximum Trim Range
  • 22° (-6° to 16°)
Maximum Tilt Range
  • 70° (-6° to 64°)

Jet Outboards

Engine Details

Mercury® jet-drive outboards are specifically designed to pilot boats in shallow waters where propeller-driven hulls are unable to operate.

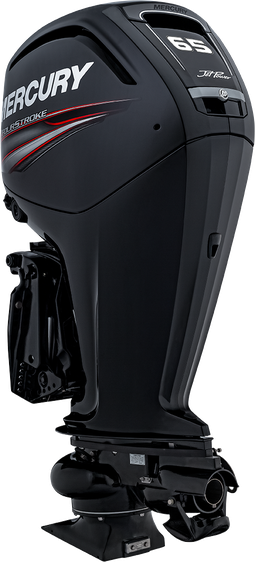

SPECIFICATIONS - 65
HP / kW
  • 65 / 48
Engine type
  • 8-valve single overhead cam (SOHC)
  • Inline 4
Displacement (L)
  • 2.1
Full throttle RPM
  • 5000-6000
Air induction
  • Performance-Tuned Scroll Intake Manifold
Fuel induction system
  • Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt
  • 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • SmartCraft Engine Guardian

Jet Outboards

Engine Details

Mercury® jet-drive outboards are specifically designed to pilot boats in shallow waters where propeller-driven hulls are unable to operate.


SPECIFICATIONS - 40
HP / kW
  • 40 / 29
Engine type
  • Inline 4
Displacement (CID/CC)
  • 60.8 / 995
Full throttle RPM
  • 5000-6000
Fuel induction system
  • 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt
  • 18 amp / 226 watt
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes

Jet Outboards

Engine Details

Mercury® jet-drive outboards are specifically designed to pilot boats in shallow waters where propeller-driven hulls are unable to operate.

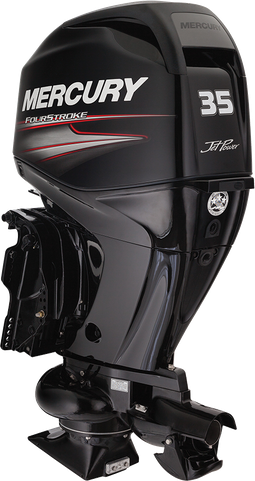

SPECIFICATIONS - 35
HP / kW
  • 35 / 26
Engine type
  • Inline 4
Displacement (CID/CC)
  • 60.8 / 995
Full throttle RPM
  • 5000-6000
Fuel induction system
  • 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt
  • 18 amp / 226 watt
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes

Jet Outboards

Engine Details

Mercury® jet-drive outboards are specifically designed to pilot boats in shallow waters where propeller-driven hulls are unable to operate.


SPECIFICATIONS - 25
HP / kW
  • 25 / 18.4
Engine type
  • Inline 3
Displacement (CID/CC)
  • 32.1 / 526
Full throttle RPM
  • 5000-5500
Fuel induction system
  • 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt
  • 15 amp / 186 watt
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • Low oil pressure
  • Over-rev
  • Overheat
  • Sensor failure
Starting
  • Electric (turn-key)
  • Manual
Steering
  • Remote
  • Tiller
Shaft length
  • 15" / 381 mm
Dry weight *Lightest model available
  • 186 lbs / 84 kg
CARB star rating
  • 3
Bore and stroke
  • 2.40 x 2.36" / 61 x 60 mm
Ignition
  • CDI w/electronic spark advance
Fuel system
  • Electronic Fuel Injection (EFI)
Gearcase options
  • Jet Drive
Trim system
  • Gas assist
Color
  • Phantom Black
