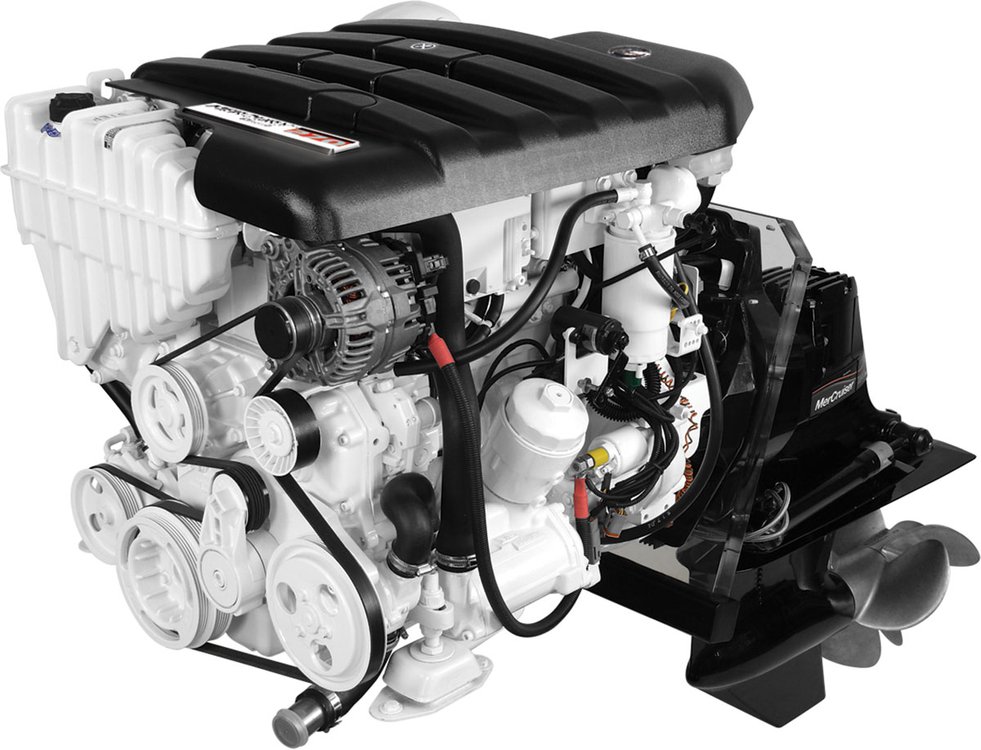

QSD 2.8 L

Engine Details

The high-pressure common-rail fuel-injection system not only ensures fuel economy, it also minimizes Noise, Vibration and Harshness (NVH), along with smoke and odor – the undesirable factors many boaters associate with yesterday’s diesels.


SPECIFICATIONS - 220
Power mhp / kW
  • 220 / 160
Bore and stroke
  • 3.70 x 3.94" / 94 x 100 mm
Maximum RPM (WOT)
  • 3800
Engine type
  • Inline 4
Displacement (L)
  • 2.8
Dimensions (L x W x H)
  • 34 x 30 x 31" / 861 x 772 x 793 mm
Transmission and Ratio
  • TM 485A 2.09:1, 2.40:1
  • ZF 631V 2.0:1, 2.5:1
Weight (engine only)
  • 794 lbs / 360 kg
Weight (incl. transmission)
  • 873 lbs / 396 kg
Weight - Bravo One
  • 1025 lbs / 465 kg
Weight - Bravo Two
  • 1041 lbs / 472 kg
Weight - Bravo Three
  • 1052 lbs / 477 kg
Cooling system
  • Closed cooling
Fuel consumption
  • 13.4 gal/hr / 50.6 l/ hr @ 3800 rpm
Compatible drives
  • Bravo One
  • Bravo Three
  • Bravo Two
Emission
  • EPA Tier 2
Compatible with SmartCraft digital technology
  • Yes

QSD 3.0 L

Engine Details

Mercury Diesel’s 3.0L engine simplifies maintenance by locating service points at the front of the engine. The oil, coolant, fuse box, seawater strainer, drive lube (sterndrive only) and power steering fluid (sterndrive only) service points are located at the front of the engine next to Mercury’s color-coded maintenance schedule to provide easy-to-understand service guidelines and easy-to-reach access.


SPECIFICATIONS - 150
Power mhp / kW
  • 150
Bore and stroke
  • 3.27 x 6.62" / 83 x 92 mm
Maximum RPM (WOT)
  • 3000
Engine type
  • V6
Displacement (L)
  • 3.0L
Dry Weight (engine only)
  • 358 Kg (789 lbs)
Dimensions (L x W x H)
  • 36.7 x 33.4 x 32.0" / 847 x 849 x 813 mm
Peak Torque
  • 493 Nm @ 2000 rpm
Air Handling
  • Turbocharged and Aftercooled
Fuel System
  • High pressure common rail
Rotation
  • Counter clockwise facing flywheel
Compression Ratio
  • 16.5:1
Fuel Pre-filtration requirement
  • Not required
Fuel lift pump
  • On engine
High pressure fuel pump
  • Bosch CP 4.2 w/ integrated gear lift pump
Valves per Cylinder
  • 4
Pistons
  • Oil jet cooled
Fuel injectors
  • Bosch CRS 2.20 (Solenoid)
Glow Plugs
  • Standard equipment with Bosch glow plug control unit (GCU)
Air inlet (Starboard Rear)
  • Filtered and silenced
Turbocharger
  • Honeywell VGT
Engine and turbocharger cooling
  • Closed cooled
Coolers
  • Aftercooler, Engine Coolant, Engine Oil, Power Steering / Gear Oil and Fuel - All are tube and shell
Seawater pump inlet size
  • 38 mm (1.5 in)
Oil sump volume
  • 8.5 L
Dipstick range
  • 1.0 L
Oil maintenance interval
  • 200 hours or annually
Coolant Volume
  • 12 L
Flywheel size
  • 290 mm (11.42 in) SAE 8
Electrical system
  • 12 V, 110 A w/ conveniently located battery power and ground studs
MerCathode (Sterndrive only)
  • Engine mounted
Engine Stop
  • ECU Controlled
Engine Control Unit (ECU)
  • Bosch EDC17
Sensors
  • Crank & cam position, intake manifold pressure/temp, compressor outlet temp, exhaust gas temp, fuel temp, rail pressure, water in fuel (WIF), oil pressure/temp, coolant temp, seawater pressure/temp, atmospheric pressure
Throttle and shift
  • Mercury DTS or Mechanical Cable
Helm and gauge compatibility
  • Mercury SmartCraft
Mercury Joystick Piloting
  • Compatible with Joystick Piloting for Sterndrives (Axius)
Sterndrive: Mercury Bravo One X
  • 1.36, 1.5, 1.65
Sterndrive: Mercury Bravo One X SeaCore
  • 1.36, 1.50, 1.65
Sterndrive: Mercury Bravo One XR
  • 1.35, 1.50
Sterndrive: Mercury Bravo Two X
  • 1.50, 1.65, 1.81, 2.00, 2.20
Sterndrive: Mercury Bravo Two X SeaCore
  • 1.50, 1.65, 1.81, 2.00, 2.20
Sterndrive: Mercury Bravo Two XR
  • 1.65
Sterndrive: Mercury Bravo Three X
  • 1.36, 1.50, 1.65, 1.81, 2.00, 2.20
Sterndrive: Mercury Bravo Three X SeaCore
  • 1.36, 1.50, 1.65, 1.81, 2.00, 2.20
Sterndrive: Mercury Bravo Three XR
  • 1.65, 1.81, 2.00
Sterndrive: Mercury Bravo Three XR SeaCore
  • 1.65, 1.81

QSD 3.0 L

Engine Details

Mercury Diesel’s 3.0L engine simplifies maintenance by locating service points at the front of the engine. The oil, coolant, fuse box, seawater strainer, drive lube (sterndrive only) and power steering fluid (sterndrive only) service points are located at the front of the engine next to Mercury’s color-coded maintenance schedule to provide easy-to-understand service guidelines and easy-to-reach access.


SPECIFICATIONS - 230
Power mhp / kW
  • 230
Bore and stroke
  • 3.27 x 6.62" / 83 x 92 mm
Maximum RPM (WOT)
  • 4200
Engine type
  • V6
Displacement (L)
  • 3.0L
Dry Weight (engine only)
  • 348 Kg (767 lbs)
Dimensions (L x W x H)
  • 36.6 x 33.5 x 30.0" / 931 x 851 x 784 mm
Peak Torque
  • 503 Nm @ 2200 rpm
Air Handling
  • Turbocharged and Aftercooled
Fuel System
  • High pressure common rail
Rotation
  • Counter clockwise facing flywheel
Compression Ratio
  • 16.5:1
Fuel Pre-filtration requirement
  • Not required
Fuel lift pump
  • On engine
High pressure fuel pump
  • Bosch CP 4.2 w/ integrated gear lift pump
Valves per Cylinder
  • 4
Pistons
  • Oil jet cooled
Fuel injectors
  • Bosch CRS 2.20 (Solenoid)
Glow Plugs
  • Standard equipment with Bosch glow plug control unit (GCU)
Air inlet (Starboard Rear)
  • Filtered and silenced
Turbocharger
  • Honeywell VGT
Engine and turbocharger cooling
  • Closed cooled
Coolers
  • Aftercooler, Engine Coolant, Engine Oil, Power Steering / Gear Oil and Fuel - All are tube and shell
Seawater pump inlet size
  • 38 mm (1.5 in)
Oil sump volume
  • 8.5 L
Dipstick range
  • 1.0 L
Oil maintenance interval
  • 200 hours or annually
Coolant Volume
  • 12 L
Flywheel size
  • 290 mm (11.42 in) SAE 8
Electrical system
  • 12 V, 110 A w/ conveniently located battery power and ground studs
Engine Stop
  • ECU Controlled
Engine Control Unit (ECU)
  • Bosch EDC17
Sensors
  • Crank & cam position, intake manifold pressure/temp, compressor outlet temp, exhaust gas temp, fuel temp, rail pressure, water in fuel (WIF), oil pressure/temp, coolant temp, seawater pressure/temp, atmospheric pressure
Throttle and shift
  • Mercury DTS or Mechanical Cable
Helm and gauge compatibility
  • Mercury SmartCraft
Mercury Joystick Piloting
  • Compatible with Joystick Piloting for Inboards
Inboard: ZF 63A
  • 1.21, 1.56, 2.03, 2.52, 2.68
Inboard: ZF 63
  • 1.25, 1.75, 2.78
Inboard: ZF 68IV
  • 1.29, 1.56, 1.99
Inboard: ZF 45C
  • 1

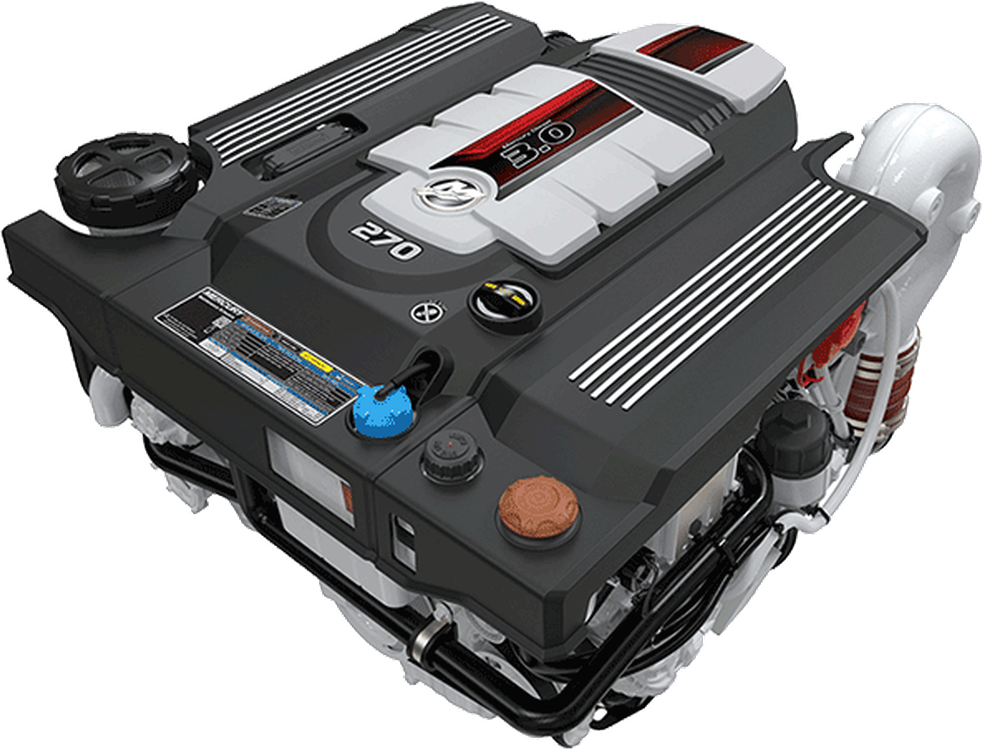

QSD 3.0 L

Engine Details

Mercury Diesel’s 3.0L engine simplifies maintenance by locating service points at the front of the engine. The oil, coolant, fuse box, seawater strainer, drive lube (sterndrive only) and power steering fluid (sterndrive only) service points are located at the front of the engine next to Mercury’s color-coded maintenance schedule to provide easy-to-understand service guidelines and easy-to-reach access.


SPECIFICATIONS - 270
Power mhp / kW
  • 270
Bore and stroke
  • 3.27 x 6.62" / 83 x 92 mm
Maximum RPM (WOT)
  • 4200
Engine type
  • V6
Displacement (L)
  • 3.0L
Dry Weight (engine only)
  • 348 Kg (767 lbs)
Dimensions (L x W x H)
  • 36.6 x 33.5 x 30.0" / 931 x 851 x 784 mm
Peak Torque
  • 594 Nm @ 2200 rpm
Air Handling
  • Turbocharged and Aftercooled
Fuel System
  • High pressure common rail
Rotation
  • Counter clockwise facing flywheel
Compression Ratio
  • 16.5:1
Fuel Pre-filtration requirement
  • Not required
Fuel lift pump
  • On engine
High pressure fuel pump
  • Bosch CP 4.2 w/ integrated gear lift pump
Valves per Cylinder
  • 4
Pistons
  • Oil jet cooled
Fuel injectors
  • Bosch CRS 2.20 (Solenoid)
Glow Plugs
  • Standard equipment with Bosch glow plug control unit (GCU)
Air inlet (Starboard Rear)
  • Filtered and silenced
Turbocharger
  • Honeywell VGT
Engine and turbocharger cooling
  • Closed cooled
Coolers
  • Aftercooler, Engine Coolant, Engine Oil, Power Steering / Gear Oil and Fuel - All are tube and shell
Seawater pump inlet size
  • 38 mm (1.5 in)
Oil sump volume
  • 8.5 L
Dipstick range
  • 1.0 L
Oil maintenance interval
  • 200 hours or annually
Coolant Volume
  • 12 L
Flywheel size
  • 290 mm (11.42 in) SAE 8
Electrical system
  • 12 V, 110 A w/ conveniently located battery power and ground studs
MerCathode (Sterndrive only)
  • Engine mounted
Engine Stop
  • ECU Controlled
Engine Control Unit (ECU)
  • Bosch EDC17
Sensors
  • Crank & cam position, intake manifold pressure/temp, compressor outlet temp, exhaust gas temp, fuel temp, rail pressure, water in fuel (WIF), oil pressure/temp, coolant temp, seawater pressure/temp, atmospheric pressure
Throttle and shift
  • Mercury DTS or Mechanical Cable
Helm and gauge compatibility
  • Mercury SmartCraft
Mercury Joystick Piloting
  • Compatible with Joystick Piloting for Inboards
Inboard: ZF 63A
  • 1.21, 1.56, 2.03, 2.52, 2.68
Inboard: ZF 63
  • 1.25, 1.75, 2.78
Inboard: ZF 68IV
  • 1.29, 1.56, 1.99
Inboard: ZF 45C
  • 1

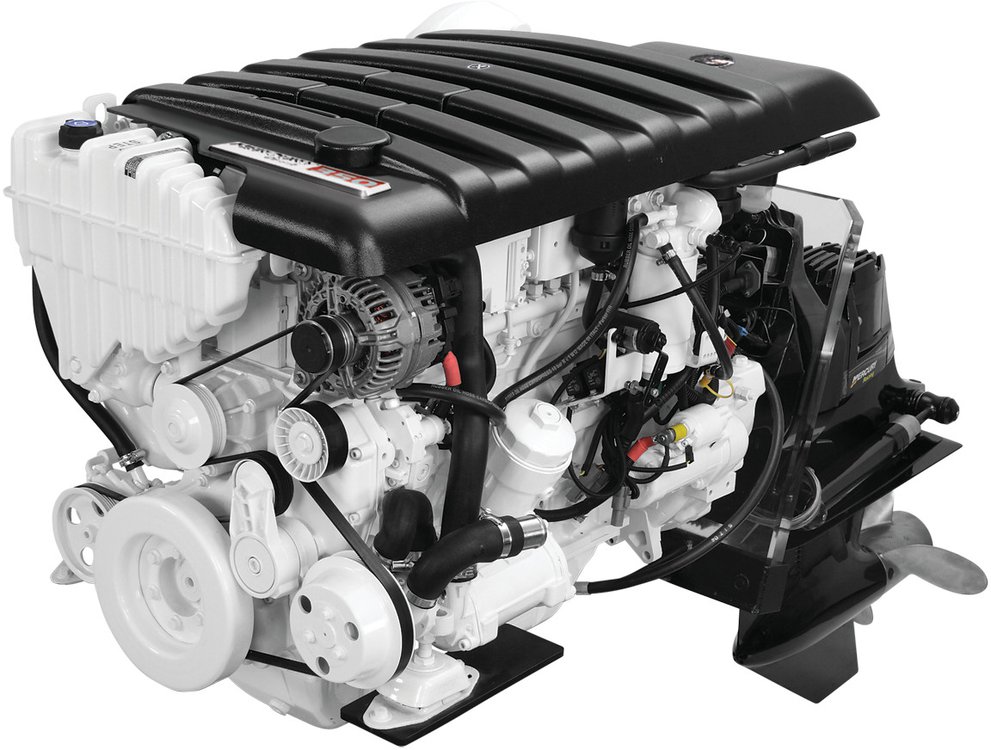

QSD 4.2L

Engine Details

The high-pressure common-rail fuel-injection system not only ensures fuel economy, it also minimizes Noise, Vibration and Harshness (NVH), along with smoke and odor – the undesirable factors many boaters associate with yesterday’s diesels.


SPECIFICATIONS - 350HP
Power mhp / kW
  • 350 / 257
Bore and stroke
  • 3.70 x 3.94" / 94 x 100 mm
Maximum RPM (WOT)
  • 3800
Engine type
  • Inline 6
Displacement (L)
  • 4.2
Dimensions (L x W x H)
  • 42 x 30 x 31" / 1077 x 773 x 790 mm
Transmission and Ratio
  • ZF 631V 1.5:1, 2.0:1
  • ZF 63A 1.5:1, 2.0:1
Weight (engine only)
  • 1014 lbs / 460 kg
Weight (incl. transmission)
  • 1111 lbs / 504 kg
Weight - Bravo Three
  • 1272 lbs / 577 kg
Cooling system
  • Closed cooling
Fuel consumption
  • 21.5 gal/hr / 81.46 l/hr @ 3800 rpm
Compatible drives
  • Bravo Three
Emission
  • EPA Tier 2 IMO RCD BSO/SAV certified

QSD 4.2L

Engine Details

The high-pressure common-rail fuel-injection system not only ensures fuel economy, it also minimizes Noise, Vibration and Harshness (NVH), along with smoke and odor – the undesirable factors many boaters associate with yesterday’s diesels.


SPECIFICATIONS 320HP
Power mhp / kW
  • 320 / 235
Bore and stroke
  • 3.70 x 3.94" / 94 x 100 mm
Maximum RPM (WOT)
  • 3800
Engine type
  • Inline 6
Displacement (L)
  • 4.2
Dimensions (L x W x H)
  • 42 x 30 x 31" / 1077 x 773 x 790 mm
Transmission and Ratio
  • ZF 631V 1.5:1, 2.0:1, 2.5:1
  • ZF 63A 1.5:1, 2.0:1, 2.5:1
Weight (engine only)
  • 1014 lbs / 460 kg
Weight (incl. transmission)
  • 1111 lbs / 504 kg
Weight - Bravo One
  • 1246 lbs / 565 kg
Weight - Bravo Two
  • 1261 lbs / 572 kg
Weight - Bravo Three
  • 1272 lbs / 577 kg
Cooling system
  • Closed cooling
Fuel consumption
  • 19.0 gal/hr / 71.96 l/hr @ 3800 rpm
Compatible drives
  • Bravo One
  • Bravo Three
  • Bravo Two
Emission
  • EPA Tier 2 IMO RCD BSO/SAV certified

QSD 4.2L

Engine Details

A high-output alternator keeps batteries charged and fishing electronics humming. Great for aluminum tiller, aluminum console, jon, utility, and fish & ski boats.


SPECIFICATIONS 270HP
Power mhp / kW
  • 270 / 199
Bore and stroke
  • 3.70 x 3.94" / 94 x 100 mm
Maximum RPM (WOT)
  • 3800
Engine type
  • Inline 6
Displacement (L)
  • 4.2
Dimensions (L x W x H)
  • 42 x 30 x 31" / 1077 x 773 x 790 mm
Transmission and Ratio
  • ZF 631V 1.5:1, 2.0:1, 2.5:1
  • ZF 63A 1.5:1, 2.0:1, 2.5:1
Weight (engine only)
  • 1014 lbs / 460 kg
Weight (incl. transmission)
  • 1111 lbs / 504 kg
Weight - Bravo One
  • 1246 lbs / 565 kg
Weight - Bravo Two
  • 1261 lbs / 572 kg
Weight - Bravo Three
  • 1272 lbs / 577 kg
Cooling system
  • Closed cooling
Fuel consumption
  • 16.0 gal/hr / 60.66 l/hr @ 3800 rpm
Compatible drives
  • Bravo One
  • Bravo Three
  • Bravo Two
Emission
  • EPA Tier 2 IMO RCD BSO/SAV certified

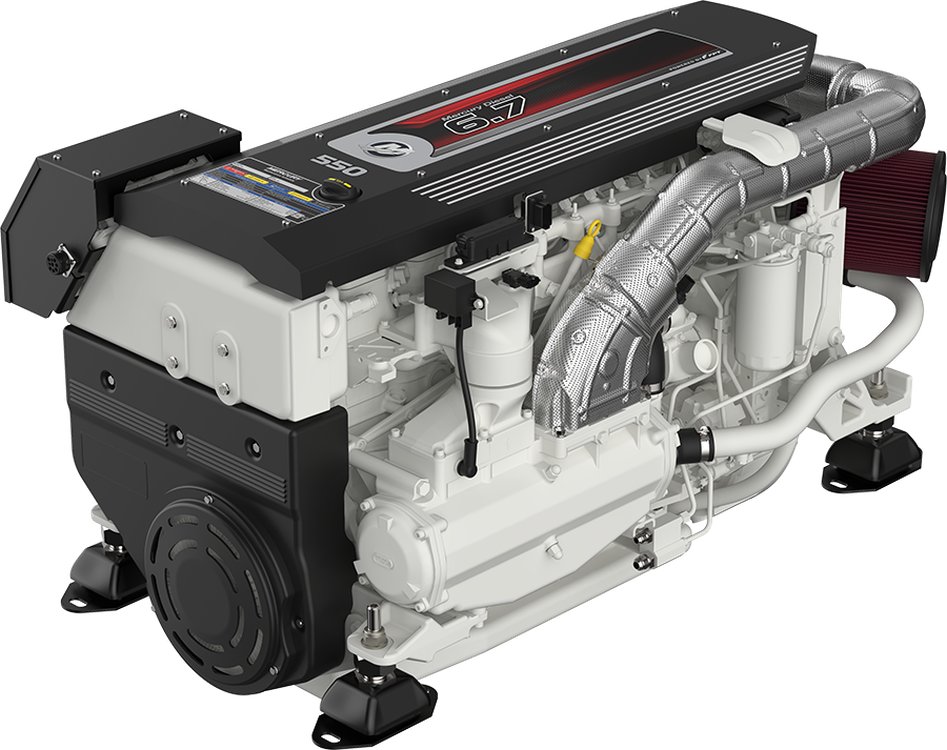

6.7 L Mech

Engine Details

This mechanically fuel-injected, Mercury Diesel engine sets a new benchmark for durability and reliability. It delivers excellent performance in a robust and functional layout. Also, several commercial duty cycle ratings are available for your needs including a medium duty-rated model.


SPECIFICATIONS - 280
Power mhp / kW
  • 280 / 206
Bore and stroke
  • 104mm x 132mm
Displacement (L)
  • 6.7
Air Handling
  • Turbocharged and Aftercooled
Valves per Cylinder
  • 2
Engine Stop
  • Fuel Shut Off
Cylinder Configuration
  • I-6, 4-Stroke Diesel
Dry weight *Lightest model available
  • 605 kg
Direction of Rotation
  • Counter Clockwise
Commercial Rating
  • Light Duty
Emission Certification
  • IMO Tier 2
Rated rpm
  • 2800
Max Torque in N-m (ft-lb) at rpm
  • 958 @ 1600
Engine Cooling
  • Closed Cooled
Turbo Cooling
  • Closed Cooled
Flywheel Housing
  • SAE 3
Bobtail Length (mm)
  • 1,085
Bobtail Width (mm)
  • 808
Bobtail Height (mm)
  • 795
Inboard: ZF 220
  • 1.00:1, 1.50:1, 1.96:1, 2.48:1, 3.00:1
Inboard: ZF 220A
  • 1.24:1, 1.53:1, 2.04:1, 3.00:1
Inboard: ZF 280IV
  • 1.56:1, 2.06:1, 2.56:1
Inboard: ZF 280-1
  • 2.48:1
Inboard: ZF 280-1A
  • 2.48:1

6.7 L Mech

Engine Details

This mechanically fuel-injected, Mercury Diesel engine sets a new benchmark for durability and reliability. It delivers excellent performance in a robust and functional layout. Also, several commercial duty cycle ratings are available for your needs including a medium duty-rated model.


SPECIFICATIONS - 30
Power mhp / kW
  • 260 / 191
Bore and stroke
  • 104mm x 132mm
Displacement (L)
  • 6.7
Air Handling
  • Turbocharged and Aftercooled
Valves per Cylinder
  • 2
Engine Stop
  • Fuel Shut Off
Cylinder Configuration
  • I-6, 4-Stroke Diesel
Dry weight *Lightest model available
  • 605 kg
Direction of Rotation
  • Counter Clockwise
Commercial Rating
  • Light Duty
Emission Certification
  • IMO Tier 2
Rated rpm
  • 2800
Max Torque in N-m (ft-lb) at rpm
  • 869 @ 1700
Engine Cooling
  • Closed Cooled
Turbo Cooling
  • Closed Cooled
Flywheel Housing
  • SAE 3
Bobtail Length (mm)
  • 1,085
Bobtail Width (mm)
  • 808
Bobtail Height (mm)
  • 795
Inboard: ZF 220
  • 1.00:1, 1.50:1, 1.96:1, 2.48:1, 3.00:1
Inboard: ZF 220A
  • 1.24:1, 1.53:1, 2.04:1, 3.00:1
Inboard: ZF 280IV
  • 1.56:1, 2.06:1, 2.56:1
Inboard: ZF 280-1
  • 2.48:1
Inboard: ZF 280-1A
  • 2.48:1

6.7 L Mech

Engine Details

This mechanically fuel-injected, Mercury Diesel engine sets a new benchmark for durability and reliability. It delivers excellent performance in a robust and functional layout. Also, several commercial duty cycle ratings are available for your needs including a medium duty-rated model.


SPECIFICATIONS - 25
Power mhp / kW
  • 230 / 169
Bore and stroke
  • 104mm x 132mm
Displacement (L)
  • 6.7
Air Handling
  • Turbocharged and Aftercooled
Valves per Cylinder
  • 2
Engine Stop
  • Fuel Shut Off
Cylinder Configuration
  • I-6, 4-Stroke Diesel
Dry weight *Lightest model available
  • 605 kg
Direction of Rotation
  • Counter Clockwise
Commercial Rating
  • Intermittent Duty
Emission Certification
  • IMO Tier 2
Rated rpm
  • 2800
Max Torque in N-m (ft-lb) at rpm
  • 746 @ 1700
Engine Cooling
  • Closed Cooled
Turbo Cooling
  • Closed Cooled
Flywheel Housing
  • SAE 3
Bobtail Length (mm)
  • 1,085
Bobtail Width (mm)
  • 808
Bobtail Height (mm)
  • 795
Inboard: ZF 220
  • 1.00:1, 1.50:1, 1.96:1, 2.48:1, 3.00:1
Inboard: ZF 220A
  • 1.24:1, 1.53:1, 2.04:1, 3.00:1
Inboard: ZF 280IV
  • 1.56:1, 2.06:1, 2.56:1
Inboard: ZF 280-1
  • 2.48:1
Inboard: ZF 280-1A
  • 2.48:1
Sterndrive - Primary
  • Bravo 2X 1.50:1
Sterndrive - Optional
  • Bravo 2XR 1.65:1

6.7 L Mech

Engine Details

This mechanically fuel-injected, Mercury Diesel engine sets a new benchmark for durability and reliability. It delivers excellent performance in a robust and functional layout. Also, several commercial duty cycle ratings are available for your needs including a medium duty-rated model.


SPECIFICATIONS - 15 SUPER
Power mhp / kW
  • 200 / 147
Bore and stroke
  • 104mm x 132mm
Displacement (L)
  • 6.7
Air Handling
  • Turbo
Valves per Cylinder
  • 2
Engine Stop
  • Fuel Shut Off
Cylinder Configuration
  • I-6, 4-Stroke Diesel
Dry weight *Lightest model available
  • 605 kg
Direction of Rotation
  • Counter Clockwise
Commercial Rating
  • Intermittent Duty
Emission Certification
  • IMO Tier 1
Rated rpm
  • 2800
Max Torque in N-m (ft-lb) at rpm
  • 646 @ 1800
Engine Cooling
  • Closed Cooled
Turbo Cooling
  • Closed Cooled
Flywheel Housing
  • SAE 3
Bobtail Length (mm)
  • 1,085
Bobtail Width (mm)
  • 808
Bobtail Height (mm)
  • 795
Inboard: ZF 220
  • 1.00:1, 1.50:1, 1.96:1, 2.48:1, 3.00:1
Inboard: ZF 220A
  • 1.24:1, 1.53:1, 2.04:1, 3.00:1
Inboard: ZF 280IV
  • 1.56:1, 2.06:1, 2.56:1
Inboard: ZF 280-1
  • 2.48:1
Inboard: ZF 280-1A
  • 2.48:1
Sterndrive - Primary
  • Bravo 2X 1.50:1
Sterndrive - Optional
  • Bravo 2XR 1.65:1

6.7 L Mech

Engine Details

This mechanically fuel-injected, Mercury Diesel engine sets a new benchmark for durability and reliability. It delivers excellent performance in a robust and functional layout. Also, several commercial duty cycle ratings are available for your needs including a medium duty-rated model.


SPECIFICATIONS - 9.9 LW
Power mhp / kW
  • 180 / 132
Bore and stroke
  • 104mm x 132mm
Displacement (L)
  • 6.7
Air Handling
  • Turbocharged and Aftercooled
Valves per Cylinder
  • 2
Engine Stop
  • Fuel Shut Off
Cylinder Configuration
  • I-6, 4-Stroke Diesel
Dry weight *Lightest model available
  • 605 kg
Direction of Rotation
  • Counter Clockwise
Commercial Rating
  • Medium Duty
Emission Certification
  • IMO Tier 2
Rated rpm
  • 2500
Max Torque in N-m (ft-lb) at rpm
  • 616 @ 1800
Engine Cooling
  • Closed Cooled
Turbo Cooling
  • Closed Cooled
Flywheel Housing
  • SAE 3
Bobtail Length (mm)
  • 1,085
Bobtail Width (mm)
  • 808
Bobtail Height (mm)
  • 795
Inboard: ZF 220
  • 1.00:1, 1.50:1, 1.96:1, 2.48:1, 3.00:1
Inboard: ZF 220A
  • 1.24:1, 1.53:1, 2.04:1, 3.00:1
Inboard: ZF 280IV
  • 1.56:1, 2.06:1, 2.56:1
Inboard: ZF 280-1
  • 2.48:1
Inboard: ZF 280-1A
  • 2.48:1
Sterndrive - Primary
  • Bravo 2X 1.65:1
Sterndrive - Optional
  • Bravo 2X 1.81:1

6.7 L Mech

Engine Details

This mechanically fuel-injected, Mercury Diesel engine sets a new benchmark for durability and reliability. It delivers excellent performance in a robust and functional layout. Also, several commercial duty cycle ratings are available for your needs including a medium duty-rated model.


SPECIFICATIONS - 8
Power mhp / kW
  • 150 / 110
Bore and stroke
  • 104mm x 132mm
Displacement (L)
  • 6.7
Air Handling
  • Naturally Aspirated
Valves per Cylinder
  • 2
Engine Stop
  • Fuel Shut Off
Cylinder Configuration
  • I-6, 4-Stroke Diesel
Dry weight *Lightest model available
  • 530 kgs
Direction of Rotation
  • Counter Clockwise
Commercial Rating
  • Medium Duty
Emission Certification
  • Not Required
Rated rpm
  • 2800
Max Torque in N-m (ft-lb) at rpm
  • 418 @ 2000
Engine Cooling
  • Closed Cooled
Turbo Cooling
  • Not Applicable
Flywheel Housing
  • SAE 3
Bobtail Length (mm)
  • 1,085
Bobtail Width (mm)
  • 706
Bobtail Height (mm)
  • 905
Inboard: ZF 220
  • 1.00:1, 1.50:1, 1.96:1, 2.48:1, 3.00:1
Inboard: ZF 220A
  • 1.24:1, 1.53:1, 2.04:1, 3.00:1
Inboard: ZF 280IV
  • 1.56:1, 2.06:1, 2.56:1
Inboard: ZF 45A
  • 1.26:1, 1.51:1, 2.03:1, 2.43:1
Sterndrive - Primary
  • Bravo 2X 1.65:1
Sterndrive - Optional
  • Bravo 2X 1.81:1

6.7 L Mech

Engine Details

This mechanically fuel-injected, Mercury Diesel engine sets a new benchmark for durability and reliability. It delivers excellent performance in a robust and functional layout. Also, several commercial duty cycle ratings are available for your needs including a medium duty-rated model.


SPECIFICATIONS - 6
Power mhp / kW
  • 135 / 99
Bore and stroke
  • 104mm x 132mm
Displacement (L)
  • 6.7
Air Handling
  • Naturally Aspirated
Valves per Cylinder
  • 2
Engine Stop
  • Fuel Shut Off
Cylinder Configuration
  • I-6, 4-Stroke Diesel
Dry weight *Lightest model available
  • 530 kgs
Direction of Rotation
  • Counter Clockwise
Commercial Rating
  • Medium Duty
Emission Certification
  • Not Required
Rated rpm
  • 2800
Max Torque in N-m (ft-lb) at rpm
  • 385 @ 2300
Engine Cooling
  • Closed Cooled
Turbo Cooling
  • Not Applicable
Flywheel Housing
  • SAE 3
Bobtail Length (mm)
  • 1,085
Bobtail Width (mm)
  • 706
Bobtail Height (mm)
  • 905
Inboard: ZF 45A
  • 1.26:1, 1.51:1, 2.03:1, 2.43:1
Sterndrive - Primary
  • Bravo 2X 1.81:1
Sterndrive - Optional
  • Bravo 2X 1.65:1

6.7L Electric

Engine Details

Because Zeus drives utilize counterrotating propellers and are mounted on large rubber grommets, gear noise and vibration are significantly reduced for a quiet and comfortable ride. Exhaust fume is nearly eliminated by venting the emission through the propeller hubs where the water flow takes it far back into the wake.


SPECIFICATIONS - 550
Power mhp / kW
  • 550 / 405
Bore and stroke
  • 4.094 x 5.197" / 104 x 132 mm
Displacement (L)
  • 6.7
Air Handling
  • Turbocharged and Aftercooled
Valves per Cylinder
  • 4
Engine Stop
  • ECU Controlled
Cylinder Configuration
  • Inline 6
Dry weight *Lightest model available
  • 1,642 lbs / 745 kg
Direction of Rotation
  • Counter Clockwise
Emission Certification
  • EPA Tier 3
  • EU RCD 2
  • IMO Tier 2
Rated rpm
  • 3200
Max Torque in N-m (ft-lb) at rpm
  • 1,580 (1,165) @ 1,900
Engine Cooling
  • Closed Cooled
Turbo Cooling
  • Closed Cooled
Flywheel Housing
  • SAE 3
Bobtail Length (mm)
  • 1,089
Bobtail Width (mm)
  • 864
Bobtail Height (mm)
  • 848
Inboard: ZF 280IV
  • 1.25:1, 1.56:1, 1.77:1, 2.06:1, 2.28:1, 2.56:1
Inboard: ZF 280-1
  • 0.81:1, 1.00:1, 1.06:1, 1.14:1, 1.21:1, 1.30:1, 1.51:1, 1.72:1, 2.00:1, 2.48:1, 3.00:1
Inboard: ZF 280-1A
  • 1.12:1, 1.48:1, 1.77:1, 2.00:1, 2.23:1, and 2.48:1
Compatible with SmartCraft digital technology
  • Yes

6.7L Electric

Engine Details

Because Zeus drives utilize counterrotating propellers and are mounted on large rubber grommets, gear noise and vibration are significantly reduced for a quiet and comfortable ride. Exhaust fume is nearly eliminated by venting the emission through the propeller hubs where the water flow takes it far back into the wake.


SPECIFICATIONS - 500
Power mhp / kW
  • 500 / 368
Bore and stroke
  • 4.094 x 5.197" / 104 x 132 mm
Displacement (L)
  • 6.7
Air Handling
  • Turbocharged and Aftercooled
Valves per Cylinder
  • 4
Engine Stop
  • ECU Controlled
Cylinder Configuration
  • Inline 6
Dry weight *Lightest model available
  • 1,642 lbs / 745 kg
Direction of Rotation
  • Counter Clockwise
Emission Certification
  • EPA Tier 3
  • EU RCD 2
  • IMO Tier 2
Rated rpm
  • 3200
Max Torque in N-m (ft-lb) at rpm
  • 1,580 (1,165) @ 1,900
Engine Cooling
  • Closed Cooled
Turbo Cooling
  • Closed Cooled
Flywheel Housing
  • SAE 3
Bobtail Length (mm)
  • 1,089
Bobtail Width (mm)
  • 864
Bobtail Height (mm)
  • 848
Inboard: ZF 280IV
  • 1.25:1, 1.56:1, 1.77:1, 2.06:1, 2.28:1, 2.56:1
Inboard: ZF 280-1
  • 0.81:1, 1.00:1, 1.06:1, 1.14:1, 1.21:1, 1.30:1, 1.51:1, 1.72:1, 2.00:1, 2.48:1, 3.00:1
Inboard: ZF 280-1A
  • 1.12:1, 1.48:1, 1.77:1, 2.00:1, 2.23:1, and 2.48:1
Compatible with SmartCraft digital technology
  • Yes

6.7L Electric

Engine Details

Because Zeus drives utilize counterrotating propellers and are mounted on large rubber grommets, gear noise and vibration are significantly reduced for a quiet and comfortable ride. Exhaust fume is nearly eliminated by venting the emission through the propeller hubs where the water flow takes it far back into the wake.


SPECIFICATIONS - 25
Power mhp / kW
  • 480 / 353
Bore and stroke
  • 4.094 x 5.197" / 104 x 132 mm
Displacement (L)
  • 6.7
Air Handling
  • Turbocharged and Aftercooled
Valves per Cylinder
  • 4
Engine Stop
  • ECU Controlled
Cylinder Configuration
  • Inline 6
Dry weight *Lightest model available
  • 1,642 lbs / 745 kg
Direction of Rotation
  • Counter Clockwise
Emission Certification
  • EPA Tier 3
  • EU RCD 2
  • IMO Tier 2
Rated rpm
  • 3200
Max Torque in N-m (ft-lb) at rpm
  • 1,580 (1,165) @ 1,900
Engine Cooling
  • Closed Cooled
Turbo Cooling
  • Closed Cooled
Flywheel Housing
  • SAE 3
Bobtail Length (mm)
  • 1,089
Bobtail Width (mm)
  • 864
Bobtail Height (mm)
  • 848
Inboard: ZF 85IV
  • 1.64:1, 2.00:1, and 2.49:1
Compatible with SmartCraft digital technology
  • Yes
